Textured Fiberglass Rope for Extreme Conditions: High Tensile Strength

Description:

1. **TOP SEALING TEXTURIZED FIBERGLASS ROPE** is crafted from continuous filament texturized C or E glass yarns, offering unparalleled strength, resilience, and flexibility. This high-quality rope is designed for demanding applications where durability and performance are paramount.

2. Engineered for high-temperature applications, this texturized fiberglass rope can withstand temperatures up to **1000ºF**, making it ideal for use in extreme environments.

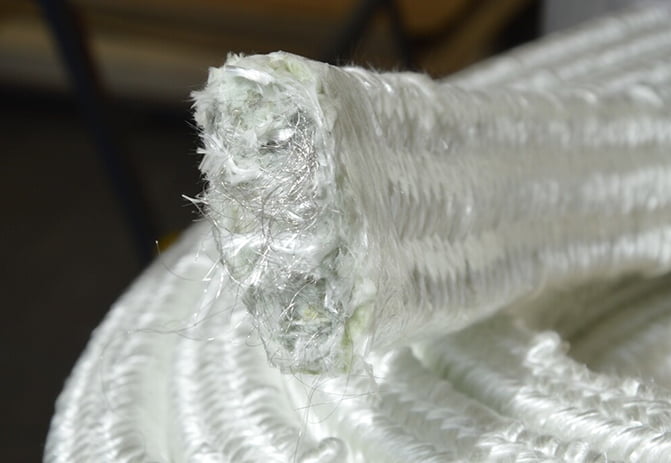

3. The construction of the rope features a core of fiberglass yarn, encased in a precision fiberglass braided jacket. This design ensures an exact diameter, providing controlled compression seals for reliable sealing performance.

4. Available in both dense and soft configurations, the **Texturized Fiberglass Rope** is manufactured to meet a variety of industrial needs, offering versatility in its applications.

5. To cater to diverse customer requirements, the **Texturized Fiberglass Rope** is available in both round and square profiles, ensuring that it can be tailored to specific project specifications.

Textured Fiberglass Rope for Extreme Conditions: High Tensile Strength

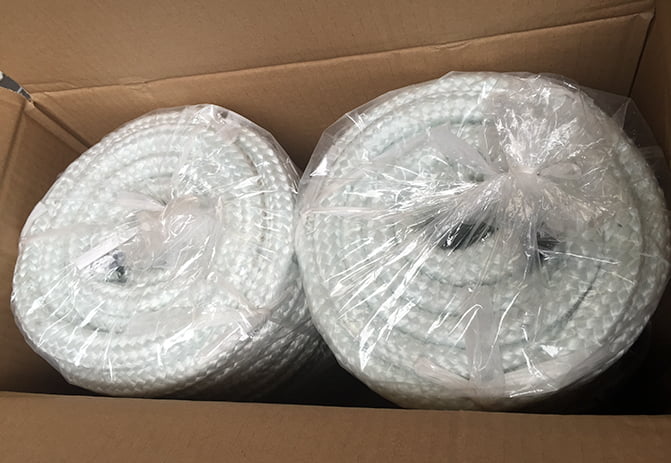

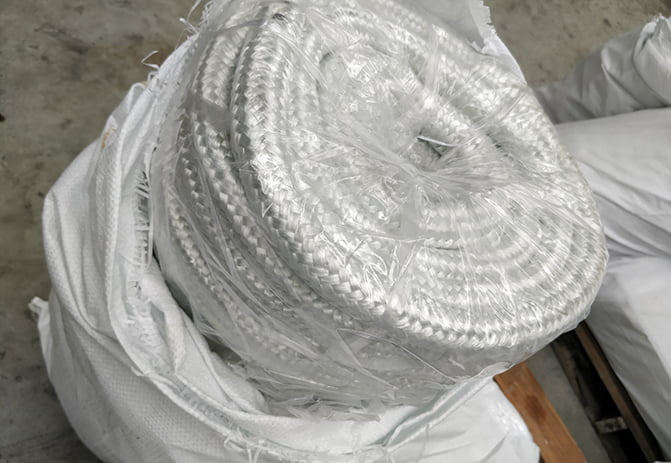

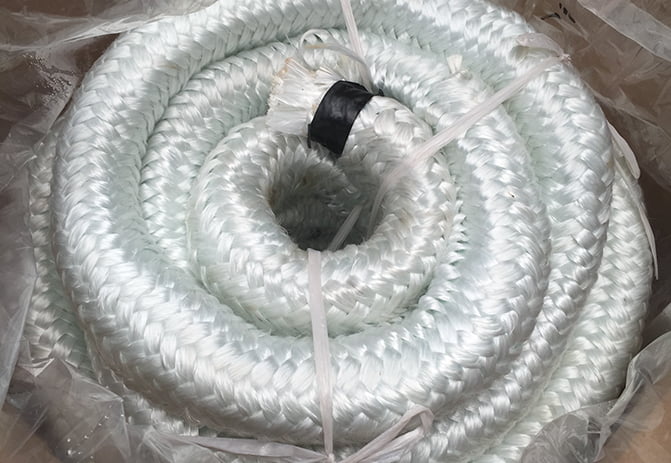

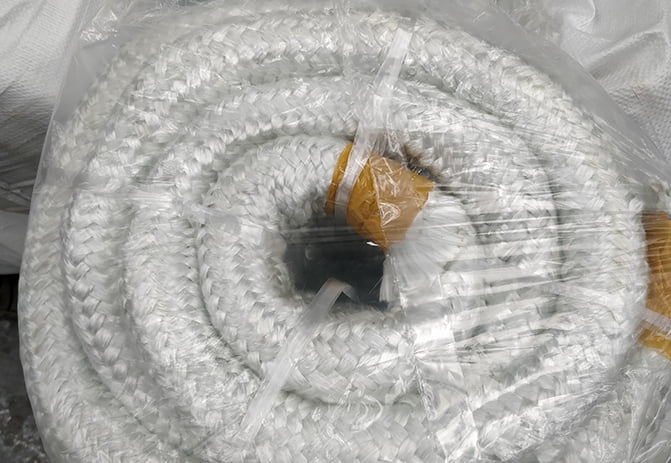

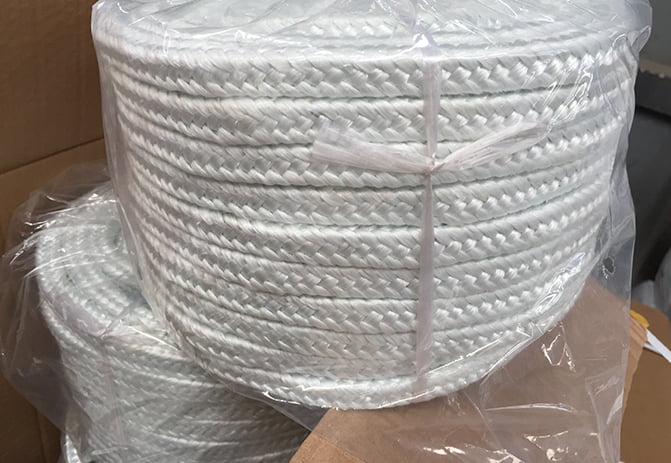

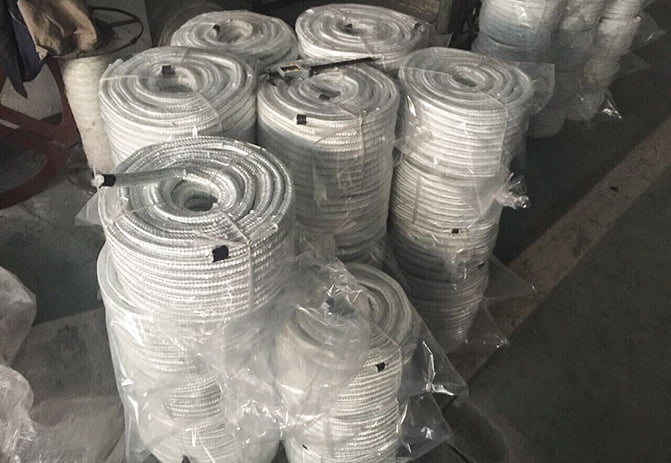

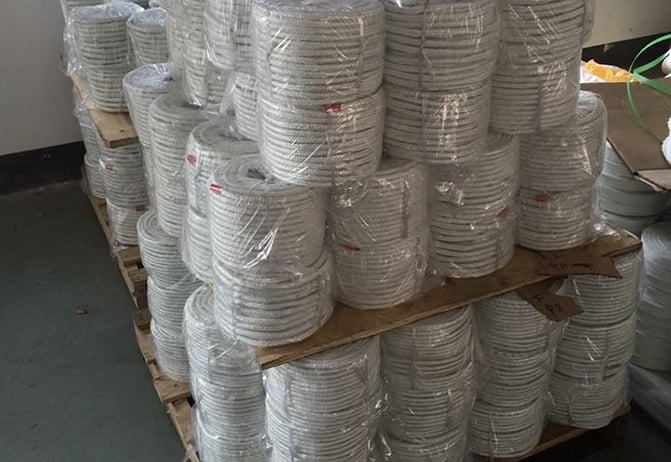

Detail Image

Product Details

Description Item E-Glass C-Glass
Chemical Composition SiO2 52-56% 64-68%
CaO 16-25% 11-15%
Al2O3 12-16% 3-5%
MgO 0-5% 4-6%
B2O3 5-10% 0-6%
Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in H2O 1.7 0.13
1.04 N NH2SO4 48.2 0.1
0.1 N  NaOH 9.7 2.28
Temperature Softening Point  840℃/1545℉ 748℃/1380℉
Coefficient of Thermal Expansion-in/in/ °F x 10-7 2℃/29℉ 5℃/40℉
Specific Gravity (bare fiber)  2.52-2.61 2.49
Pristine Tensile Strength, psi 500,000 400,000
Dielectric Constant, 72 °F, 106 Hz  6.1-6.7 6.24

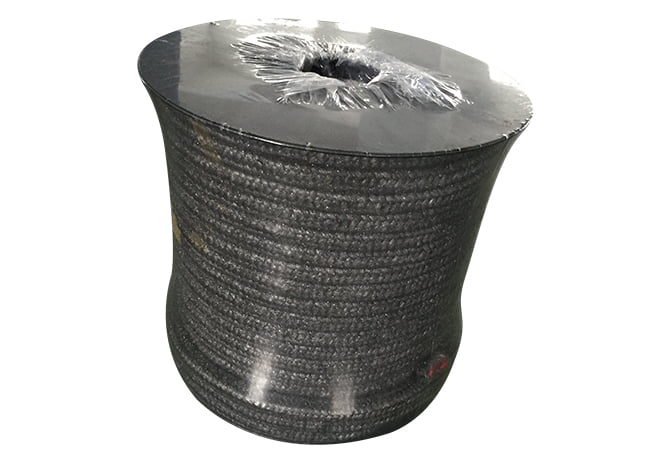

More Styles

Application Data
Advantages
Video
Comparison Vision
Description Item Fiberglass Square Rope Fiberglass Round Rope
Style No. 3100S 3400S 3200R 3500R
Glass Type C-Glass E-Glass C-Glass E-Glass
Cross Section Square Square Round Round
Physical
Properties
Fiber Diameter 6-9 microns
Fiber Length Continuous Filament
Breaking Elongation 4.81% Std.  4.81% Wet
Tensile Strength 3093 - 3438 N/mm2
Elastic Recovery 100%
Thickness English  0.1181inch to 3.9370inch
Metric 3mm to 100mm
Density English  74.88lb/ft³
Metric 1.2g/cm³

Simply you can wholesale Textured Fiberglass Rope for Extreme Conditions: High Tensile Strength direct from manufacturers.

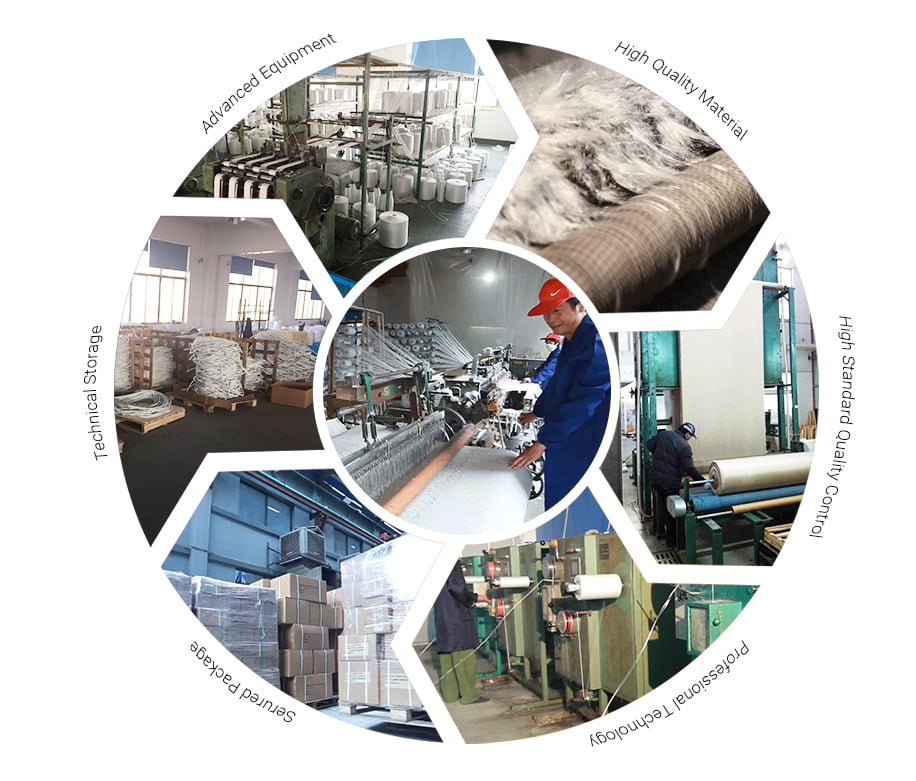

Professional Manufacturer
