Conductive Flexi-Graphite Paper: Advanced Thermal and Chemical Resistance

Description:

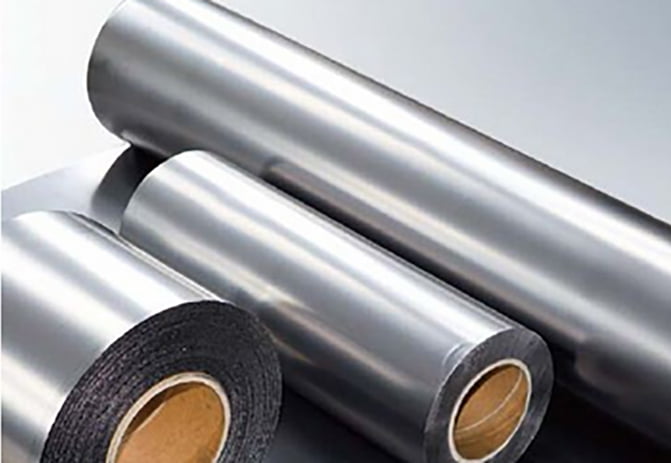

Introducing the 'Top Sealing Flexible Graphite Paper,' crafted from meticulously exfoliated graphite flakes and meticulously processed through an extensive calendaring technique. This results in a thin, supple sheet that is free from any binders or resins. Boasting exceptional attributes such as thermal stability, resistance to both high and low temperatures, impermeability, and outstanding corrosion resistance, this versatile product has found its place in a variety of applications. It is extensively utilized in industrial sealing solutions, as heating elements for extreme temperature environments, and as insulation shields, ensuring performance and reliability in the most demanding conditions.

Conductive Flexi-Graphite Paper: Advanced Thermal and Chemical Resistance

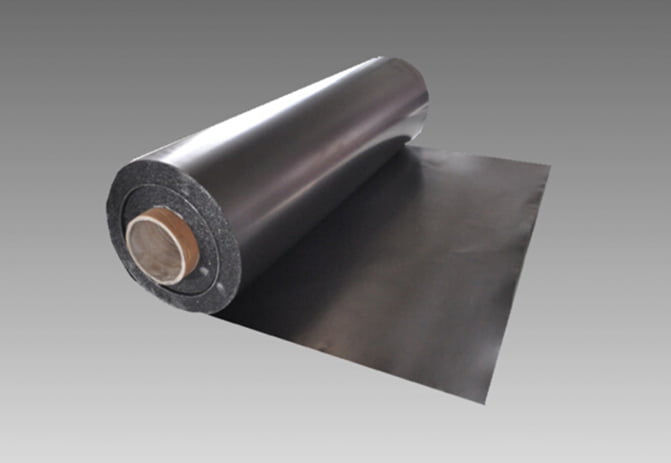

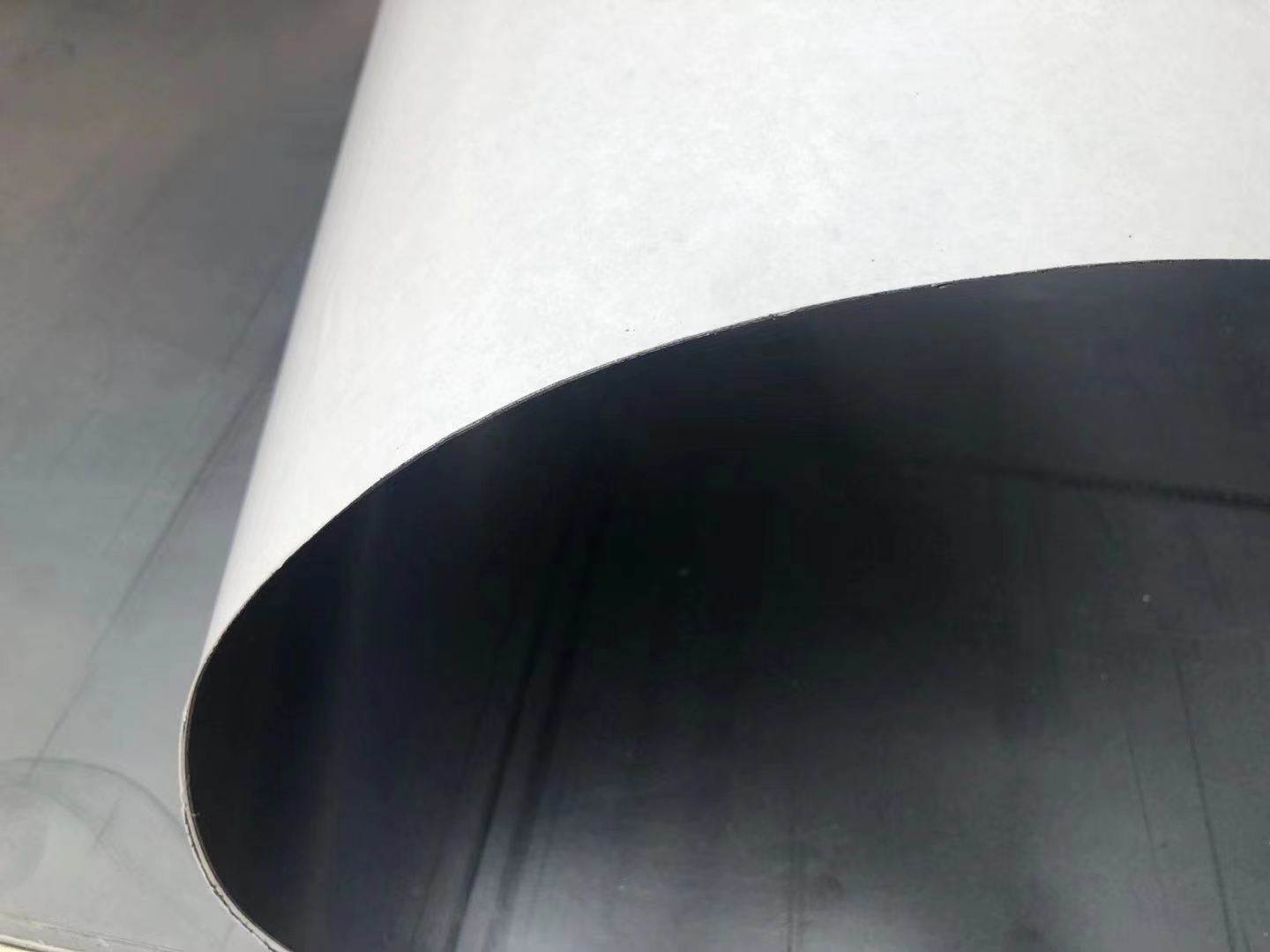

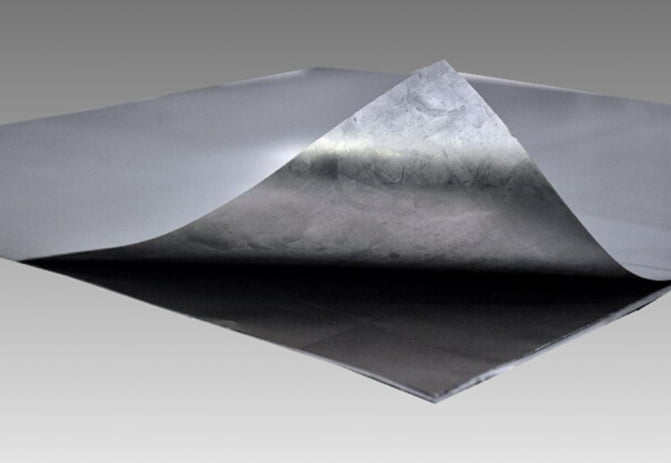

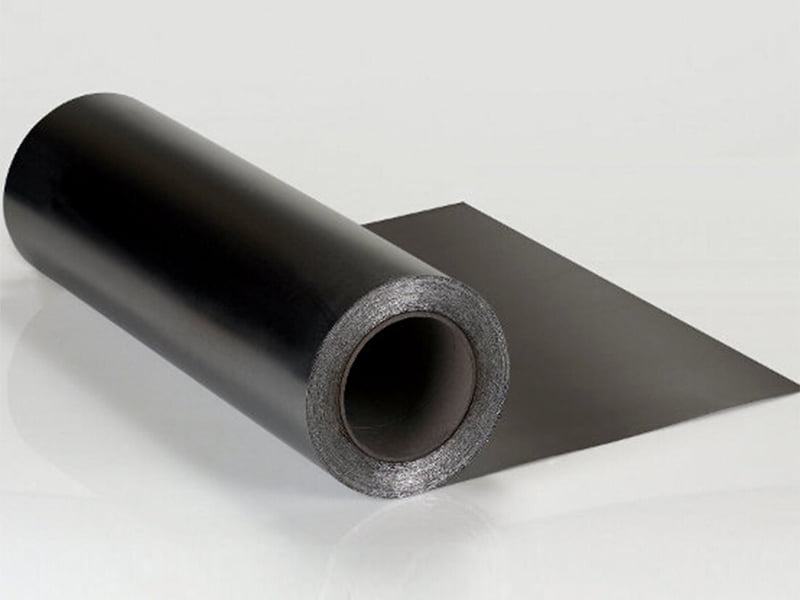

Detail Image

Product Details

Compressibility 35%-55%
Recovery ≥9%
Ash Content  ≤1.0%
TAG(450℃) ≤1.0%
Total Sulphur Content  ≤500ppm
Max Temp. Oxyd Atmosphere  650° C
Max Temp. Non oxyd Atmosphere  3000℃
Chloride content  < 25 ppm
Inhibitor (against oxidation)  with an organic
Iron content  < 1800 ppm
Leachable Sulphur  < 200ppm

More Styles

Application Data
Advantages
Video
Comparison Vision
Property Description Data
Carbon Content(Purity) - 99%
Thickness English 0-0.135in
Metric ≤±HX7%, 0-4.5mm
Density English 43-81lb/ft3
Metric ≤±0.07g/cm³, 0.7-1.3g/cm3
Material Nature Graphite -
Working Temperature English -40 to +752℉
Metric -40 to +400℃
Tensile Strength - ≥4.0 MPa
Thermal Conductivity Through Thickness  36 BTU.in/ft2.h.F (5 W/m.K)
Parallel to Surface 960 BTU.in/ft2.h.F (140 W/m.K)
pH Range 1-14 -

Simply you can wholesale Conductive Flexi-Graphite Paper: Advanced Thermal and Chemical Resistance direct from manufacturers.

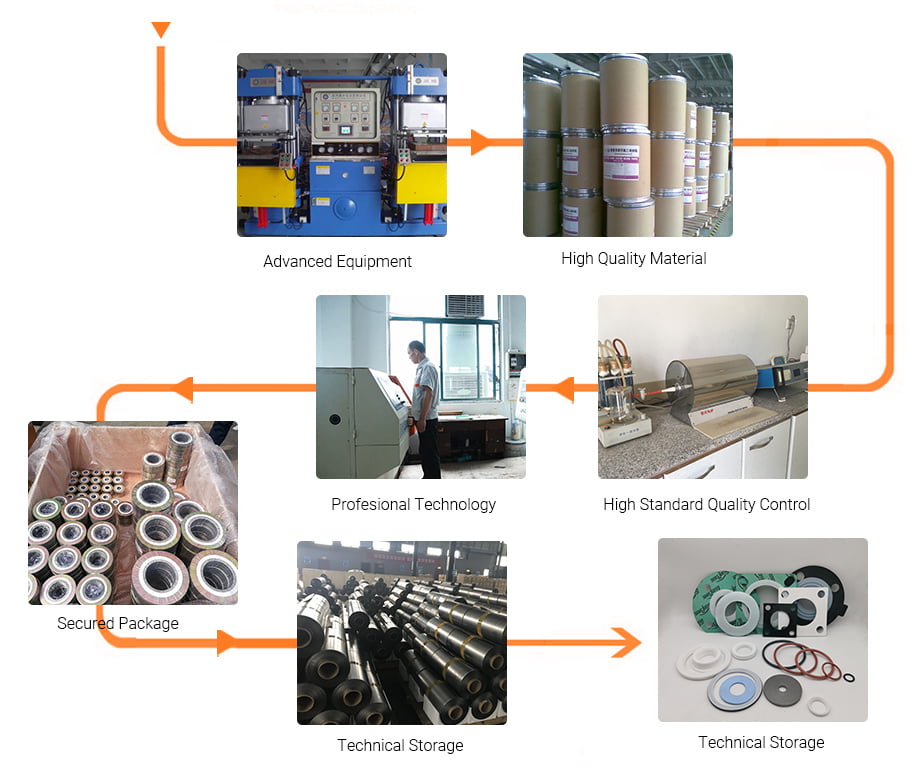

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Conductive Flexi-Graphite Paper: Advanced Thermal and Chemical Resistance suppliers known by the world since 2000.
