Enhanced Durability Texturized Fiberglass Fabric: Advanced Reinforcement for Industrial Applications

Description:

"Premium High-Temperature Resistant Texturized Fiberglass Fabric: Advanced Filtration Solution for Enhanced Performance"

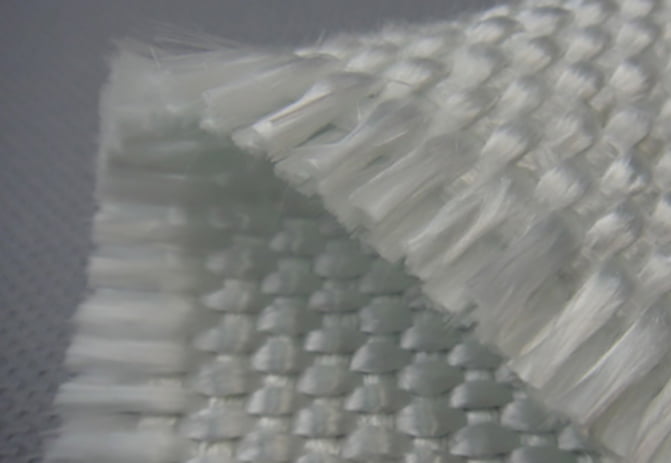

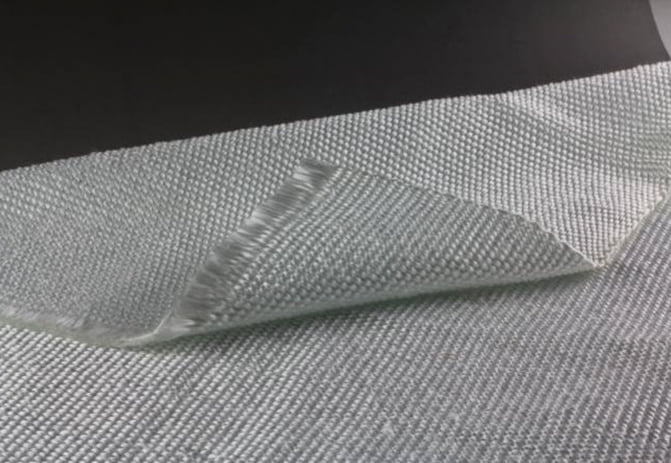

Our TOP SEALING TEXTURIZED FIBERGLASS FABRIC is crafted from specially texturized yarns, offering exceptional high-temperature resistance and remarkable strength post the puffing process. This innovative fabric is an evolution of the traditional continuous glass fiber filter cloth, boasting several key advantages:

- **Fluffy Structure**: The unique texturized yarn creates a fluffy texture that enhances air permeability.
- **Efficiency Improvement**: This improved air flow contributes to better filtering efficiency and reduced filtration resistance.
- **High Filtration Rate**: The fabric achieves an impressive dust removal efficiency of over 99.5%, ensuring superior performance in various industrial applications.

This advanced textile is designed for environments that demand the utmost in filtration capabilities, providing a reliable solution for high-temperature and high-strength filtration needs.

Enhanced Durability Texturized Fiberglass Fabric: Advanced Reinforcement for Industrial Applications

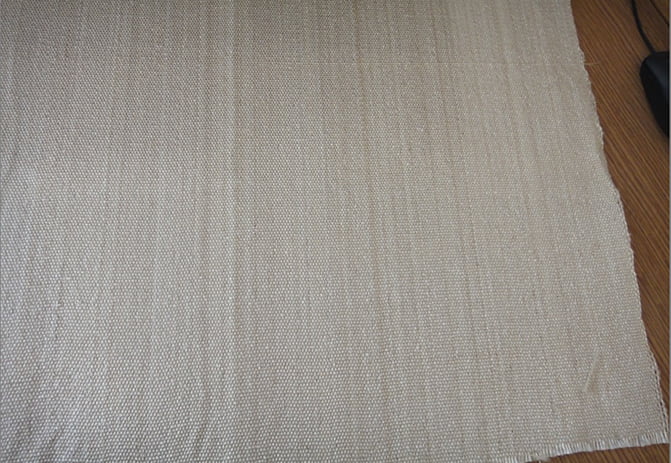

Detail Image

Product Details

DescriptionStyle No.		3800-08	3800-10	3800-15	3800-20	3800-30
Weight	English	18 oz/y2	24 oz/y2	30 oz/y2	36 oz/y2	52 oz/y2
Weight	Metric	650 g/m2	800 g/m2	1000 g/m2	1250 g/m2	1800 g/m2
Thickness	English	0.03 inch	0.04 inch	0.06 inch	0.08 inch	0.1 inch
Thickness	Metric	0.8 mm	1 mm	1.5 mm	2 mm	3 mm
Width	English	40-70 inch	40-78 inch	40-78 inch	40-78 inch	40-78 inch
Width	Metric	1-1.8 m	1-2 m	1-2 m	1-2 m	1-2 m
Temperature	English	550 ℃
Temperature	Metric	1000 ℉
Weave		Plain

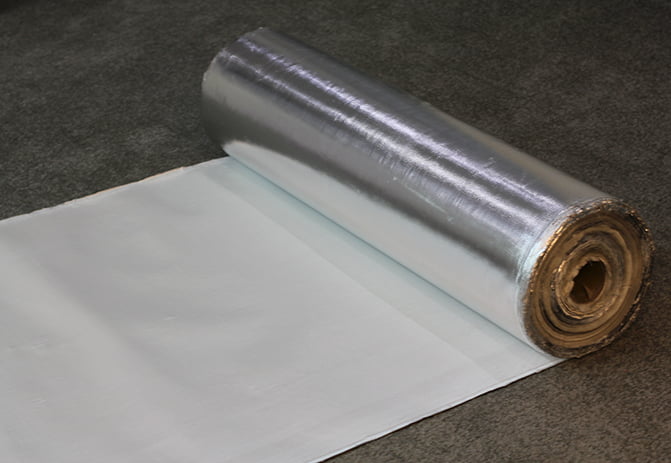

Coating & Treatment		Aluminum Foil, Vermiculite, Graphite, PU, PVC, Silicone and Heat Treated
Color		Yellow, Black, Red, Golden

More Styles

Application Data

Advantages

Video

Comparison Vision

Property	Description	Value and Tolerance
Property	Description	English	Metric
Tensile Strength	Warp	200-400ibs/in min. avg.	35-70n/mm min. avg.
Tensile Strength	Fill	100-200ibs/in min. avg.	17.5-35n/mm min. avg.
Tear Strength	Warp	50ibs min. avg	8.75n/mm min. avg.
Tear Strength	Fill	25ilbs min. avg	4.375n/mm min. avg.
Flame Resistance	Flame Out(SEC)	1second
	Afterglow(SEC)	2.5second
	Char Length (Inches)	0.3max. avg
Burst Strength	-	200ibs/in² min. avg	14.0618kg/cm² min. avg
Hydrostatic Resistance	-	200ibs/in² min. avg	14.0618kg/cm² min. avg

-All types of thermal insulation and heat protection
-Welding blankets and fire curtains
-Expansion joints
-Basic cloth for coatings and laminations
