Precision-Crafted TOP SEALING OVAL OCTAGONAL RING JOINT GASKETS: Engineered for High-Pressure Industries

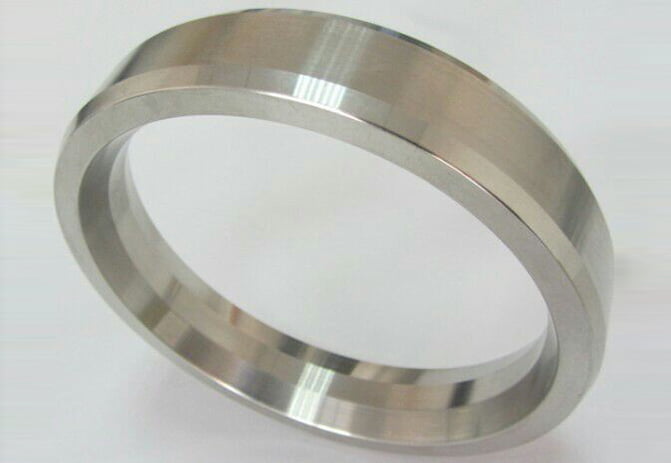

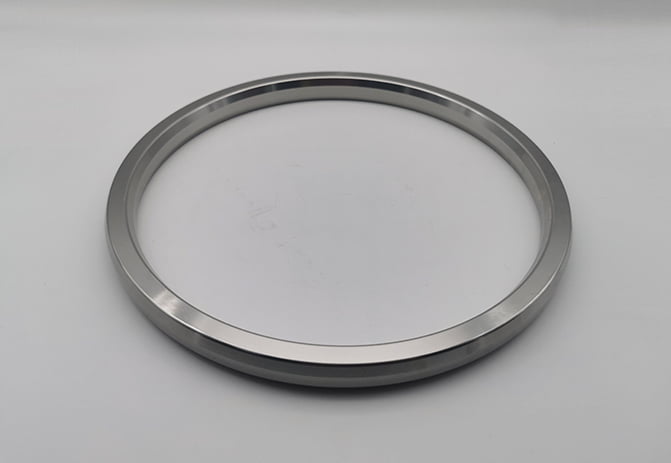

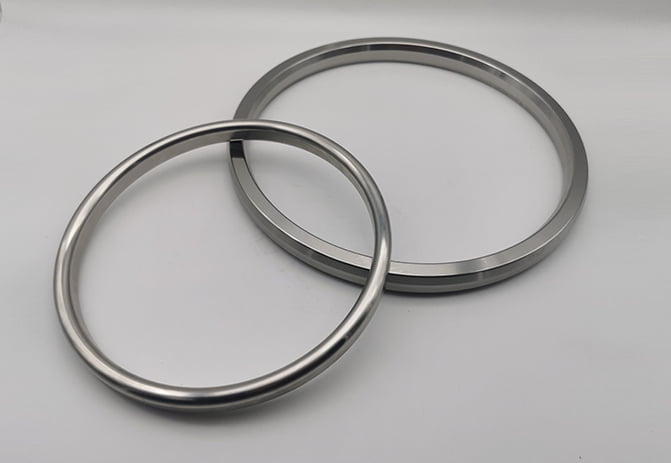

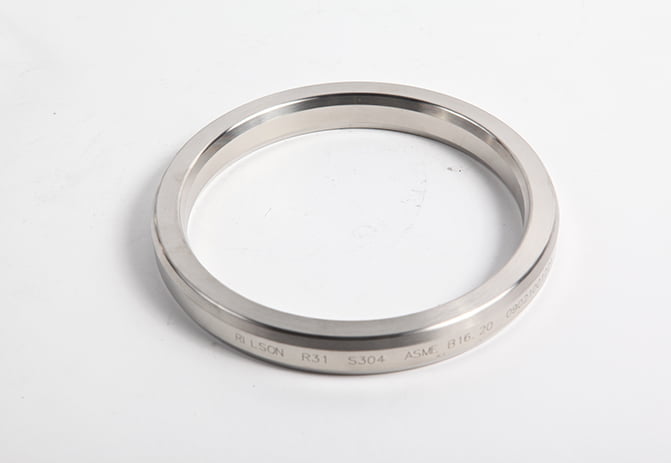

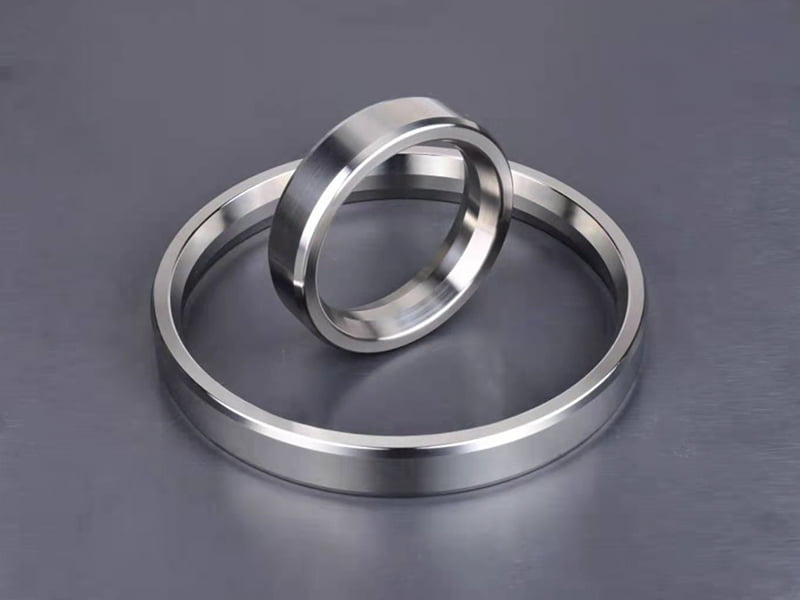

Our meticulously machined metallic gaskets are specifically designed for high-pressure applications across the Oil, Gas, Petrochemical, and Offshore sectors. The Oval and Octagonal section Ring type Joints are expertly crafted to fit flanges with standard ring type grooves. These robust standard shapes are capable of sealing pressures up to 5,000 psi, fully compliant with API 6A standards.
| Product | Materials | Surface Pressure(N/mm2) | |||
| T=20℃ | T=300℃ | ||||
| min | max | min | max | ||
| (OVAL and OCTAGONAL) | Mild Carbon Steel 11.003 |
235 | 525 | 235 | 515 |
| Stainless Steel 14.541 |
335 | 750 | 335 | 630 | |
| Stainless Steel 14.828 |
400 | 900 | 400 | 750 | |
| Alloy-Steel 15.415 |
300 | 675 | 300 | 585 | |
| Alloy-Steel 17.362 |
400 | 900 | 400 | 730 | |
| Monel 24.360 |
200 | 660 | 260 | 650 | |
Simply you can wholesale Oval Octagonal Ring Joint Gasket: Precision-Engineered for Sealing Excellence direct from manufacturers.
Sunpass Oval Gaskets: API 6A R-Series Compliance for High-Pressure Applications
1. Our Sunpass Oval Gaskets are meticulously crafted to meet the stringent standards of the API 6A R-Series.
2. These robust gaskets are engineered for use in high-pressure environments, capable of withstanding pressures up to 10,000 PSI.
3. The unique oval design is the sole gasket type compatible with a bottom radiused groove, ensuring a perfect fit and superior sealing performance.
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Oval Octagonal Ring Joint Gasket: Precision-Engineered for Sealing Excellence suppliers known by the world since 2000.
