High-Performance PTFE & Aramid Fiber Corner Braided Gland Packing for Reliable Sealing Applications

Description:

Advanced Sealing Solution: The TOP SEALING PTFE and Aramid Fiber Corner Braided Gland Packing STYLE 6500 PTFE is a premium-grade sealing material, meticulously crafted from pure PTFE yarn intricately braided with 100% Dupont Kevlar yarn at the corners. This innovative design significantly enhances the natural lubricating properties of Aramid while simultaneously reinforcing the inherent strength of pure PTFE packing.

Superior Sliding and Thermal Performance: The packing boasts excellent sliding characteristics and thermal conductivity, attributes that are essential for high-performance sealing in various applications. Each fiber is meticulously impregnated with a PTFE emulsion, ensuring an even distribution of PTFE throughout the packing.

Chemical Resistance and Protection: The fibers are thoroughly saturated and sealed with PTFE particles, creating a protective barrier that shields the fibers from chemical degradation. This advanced impregnation system not only enhances the packing's durability but also ensures long-lasting performance in corrosive environments.

Optimized Break-in Characteristics: To ensure smooth operation and ease of installation, a special high-temperature synthetic lubricant is incorporated into the packing. This unique addition facilitates a seamless break-in period, reducing the risk of equipment damage and extending the service life of your sealing system.

High-Performance PTFE & Aramid Fiber Corner Braided Gland Packing for Reliable Sealing Applications

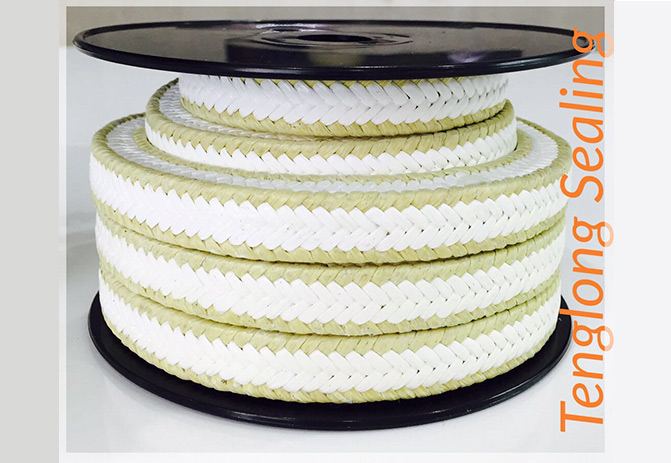

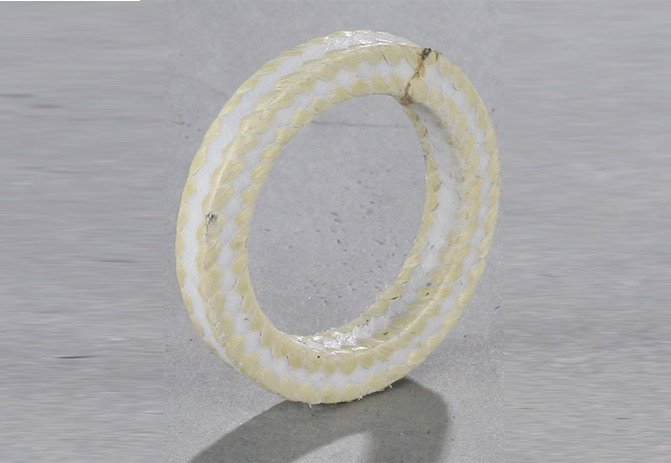

Detail Image

Product Details

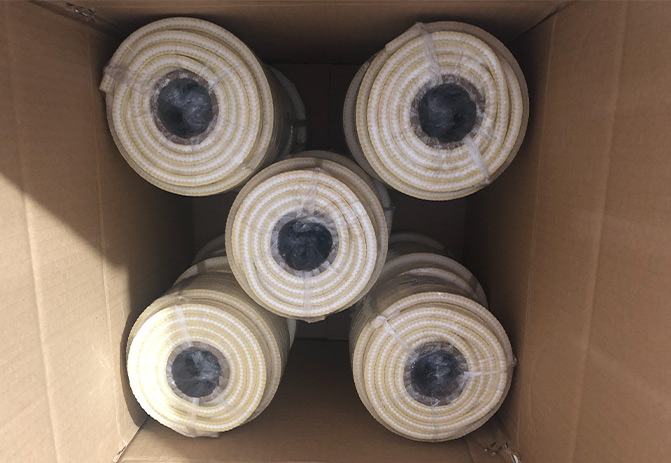

Regular：3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request

Not suitable for ：Concentrated acids and lye, alkali metals, fluorine and fluorine compounds at high temperature.

More Styles

Application Data

Advantages

Video

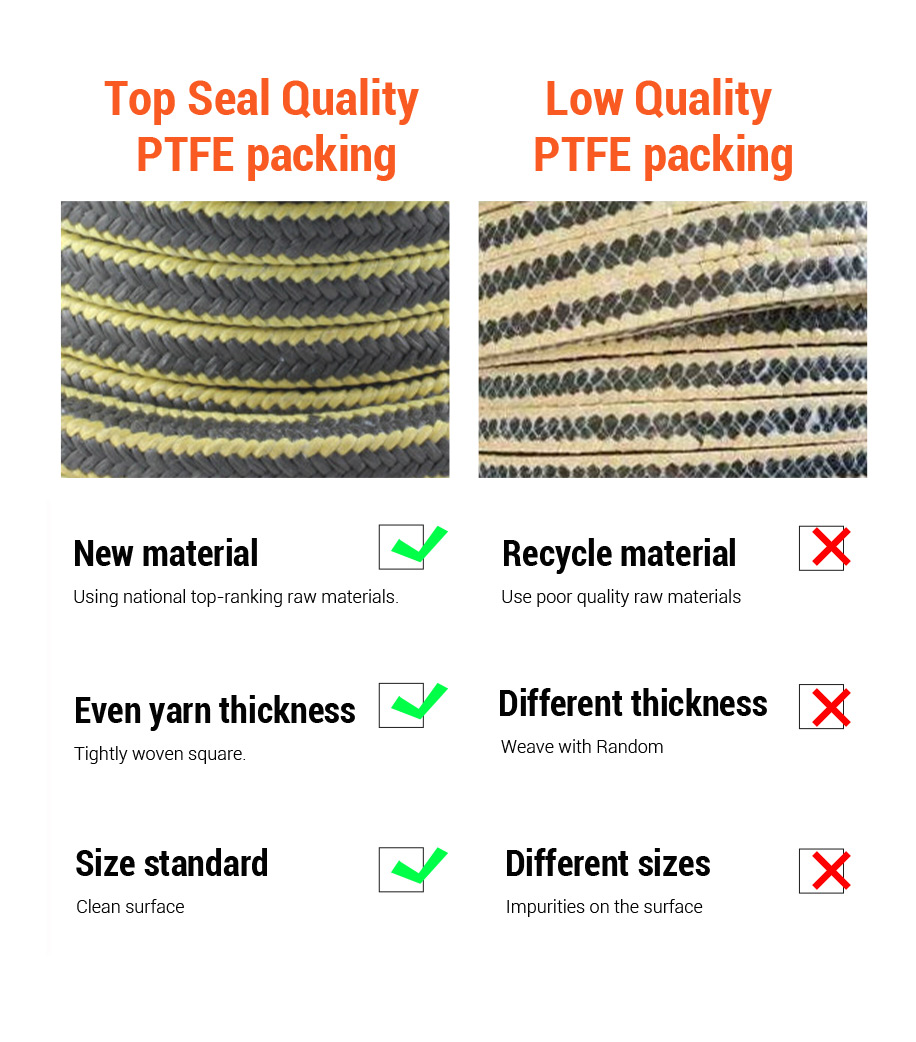

Comparison Vision


Pressure: bar	25	500	250
Speed: m/s	20	2	—
PH Range	2-12
Temp.℃	-100 to +260
Density: (g/cm³)	1.45-1.50
Size	1/4"-2"
Size	6mm-50mm

1. "Versatile Industrial Application: PTFE and Aramid Fiber Corner Braided Gland Packing, STYLE 6500PTFE, is a robust sealing solution designed for use in piston pumps, valves, and various other general industrial applications. It is particularly effective in environments such as pulp and paper production, wastewater treatment, and the petrochemical industry."

2. "Chemical and Abrasive Resistance: STYLE 6500PTFE is formulated to be compatible with a wide range of substances, including oils, solvents, diluted acids, and alkalis. It also offers exceptional resistance to abrasive media, making it suitable for applications involving sand, slurry, sewage, brine, and other gritty materials."

Simply you can wholesale High-Performance PTFE & Aramid Fiber Corner Braided Gland Packing for Reliable Sealing Applications direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and High-Performance PTFE & Aramid Fiber Corner Braided Gland Packing for Reliable Sealing Applications suppliers known by the world since 2000.
