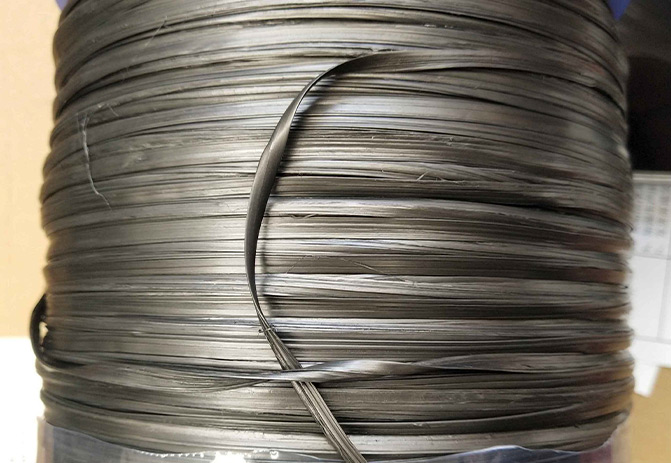

TOP SEALING's Graphite PTFE Yarn 6200Y is crafted from high-purity powdered graphite and enhanced through a special treatment process. This PTFE-infused graphite yarn boasts exceptional strength, minimal creep, and excellent corrosion resistance. It is ideally utilized for the braiding of seal packing, ensuring reliable performance in various applications.
| Property | Value | ||
| Type | Without Oil | With Lubricant | |
| Yarn Count | 2500-3500Tex | ||
| Plied Yarn | 3-6 | ||
| Density | English | 0.04ibs/in3 | |
| Metric | ≥1.0g/cm3 | ||
| Heat Resistance |
English | 500℉ | |
| Metric | 260℃ | ||
| Content | Graphite | >2% | >2% |
| PTFE | 97-99% | 97-99% | |
| Oil | - | 1% | |
| Shaft Speed | English | 590-788in/s | |
| Metric | 15-20m/s | ||
| Shrinkage | 14% | ||
| Elongation | 6% | ||
| Breaking Force | ≥33N | ||
| LOI | <3% | ||
| Size | English | - | |
| Metric | 1.5g/m, 2g/m, 3g/m, 5g/m | ||
Simply you can wholesale Graphite-Infused PTFE Yarn direct from manufacturers.
- "Superior Sealing Performance"
- "Minimal Friction Coefficient"
- "Low Contact Temperature"
- "Rapid Heat Dissipation from the Contact Surface"
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Graphite-Infused PTFE Yarn suppliers known by the world since 2000.
