"Style 6800 PTFE Filament with PTFE Packing: A High-Performance Braided Solution"

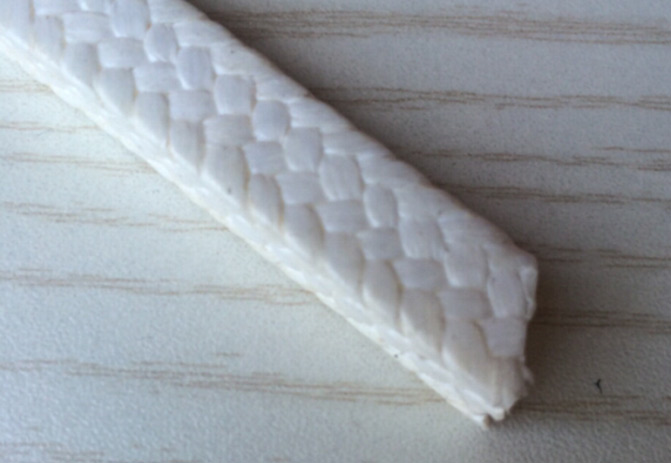

Introducing our Style 6800, a premium braided packing solution crafted from pure PTFE filament yarns. This exceptional product is impregnated with PTFE dispersion, resulting in a firm, high-density braided packing that offers unparalleled performance and reliability. Ideal for applications requiring the utmost in sealing efficiency and material integrity.

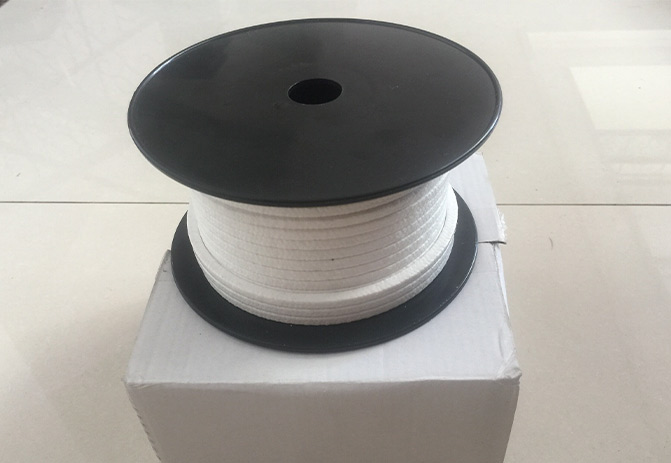

Standard Packaging Options: We offer a variety of standard package sizes including 3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pounds, 5kg, 5 pounds, 10kg, and 10 pounds. Custom packaging solutions are also available upon request to meet your specific needs.
Limitations: Please note that our product is not recommended for use with molten alkali metals and fluorine compounds, especially under conditions of high temperature and pressure.
|
|
|
|
|
|
Pressure: bar |
20 |
100 |
200 |
|
Speed: m/s |
4 |
2 |
2 |
|
PH Range |
0-14 |
||
|
Temp.℃ |
-240 to +260 |
||
|
Density: (g/cm³) |
1.75 |
||
"PTFE Filament with PTFE Packing STYLE 6800: Versatile and Resilient for Challenging Environments"
The PTFE Filament with PTFE Packing STYLE 6800 is a robust and versatile sealing solution designed for a broad spectrum of applications. It is expertly crafted to handle a wide range of process chemicals, including concentrated acids, and is suitable for use in valve stems, rotary shafts, reciprocating equipment, and other high-speed processing machinery, as well as rods and pistons.
Our STYLE 6800 packing is compatible with a diverse array of substances, including water, steam, concentrated acids and caustics, solvents, oils, fatty acids, detergents, and aggressive gases. It also demonstrates exceptional resistance to gamma and neutron radiation, making it ideal for environments with exposure to such conditions. Additionally, it is resistant to hydrogen and suitable for use with heat transfer oils, as well as most other chemicals and solvents.
With its high peripheral speed capabilities and adaptability to various mediums, the PTFE Filament with PTFE Packing STYLE 6800 is the go-to choice for demanding industrial applications where reliability and chemical resistance are paramount.
Simply you can wholesale Premium PTFE Filament Gland Packing for Enhanced Sealing and Durability direct from manufacturers.
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Premium PTFE Filament Gland Packing for Enhanced Sealing and Durability suppliers known by the world since 2000.
