Premium Corner Castings: Reinforce Your Structures with Durable and Reliable Support

Description:

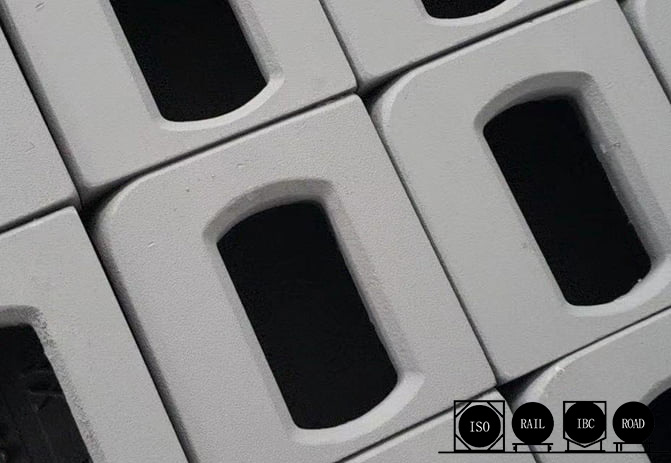

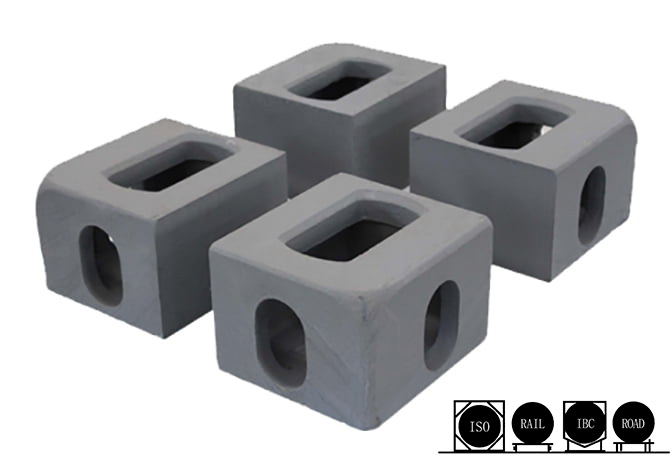

SUNPASS Corner Castings SPCC represent the industry-standard ISO-type container corner castings. These essential structural components are integral to the design of shipping containers, enabling seamless horizontal and vertical interconnection with other containers. They also facilitate secure attachment to various transportation modes, including ships, railways, and roads.

The corner casting serves as a critical structural junction when linking containers, providing the necessary connection point for a wide array of shipping container connectors. This includes versatile mechanisms such as double-ended twist locks, weldable twist locks, and bridge clamps, all of which are vital for the secure and efficient transportation of goods across the globe.

Premium Corner Castings: Reinforce Your Structures with Durable and Reliable Support

Detail Image

Product Details

Feather:
1. Made in accordance with ISO 1161/BS 3951 and Lloyds Register Guidance Note A
2. Material: SCW480. Other material is available.
3. A standard 96" wide ISO container uses 8 corner castings consisting of:
Top Left - 2 pcs

Top Right - 2 pcs

Bottom Left - 2 pcs

Bottom Right - 2 pcs

More Styles

Application Data
Advantages
Video
Comparison Vision
Operating Mode Bearing Condition Designed Load(kN)
Stacked The load of the top Angle is biased laterally by 25.4mm and longitudinally by 38mm 848
Bottom corner piece (placed on horizontal support) 954
The lateral offset of the bottom corner load is 25.4mm, and the longitudinal offset is 38mm (equivalent to the fifth layer container to the sixth layer container). 848

Simply you can wholesale Premium Corner Castings: Reinforce Your Structures with Durable and Reliable Support direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Premium Corner Castings: Reinforce Your Structures with Durable and Reliable Support suppliers known by the world since 2000.
