Pressure Relief Burst Disc

Description:

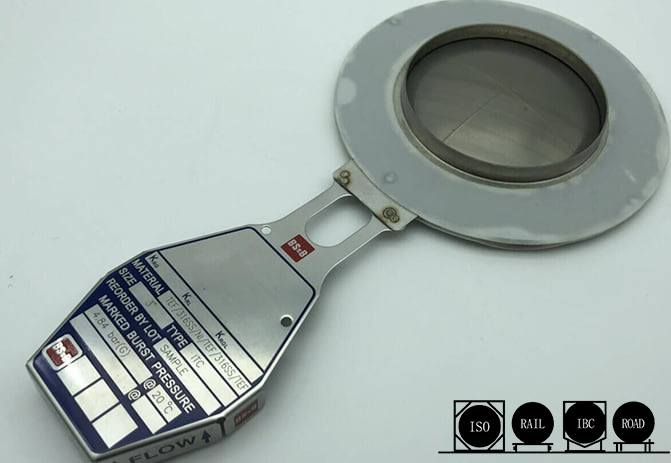

The SUNPASS Burst Disc BD025484 is a comprehensive safety device, meticulously crafted to safeguard intermodal tank containers against overpressure during the storage and transportation of liquefied gases. Comprising a bursting disc, clamper, and additional components, this system is engineered for optimal performance and reliability. The burst disc serves a dual purpose: it isolates the relief valve, ensuring that no leakage occurs through it, while also providing a fail-safe mechanism to release pressure if it exceeds safe limits. This advanced design makes the SUNPASS Burst Disc BD025484 an essential component for maintaining the integrity and safety of high-pressure systems.

Detail Image

Product Details

Code		Size		Burst Pressure		Material	Temperature Rate
Code		In	Mm	Barg	Pslg	Material	°F	°C
BD025484	Liquid Tank Container	2.5	65	4.84	70.2	Nickel	20	68
BD030484	Liquid Tank Container	3	80	4.84	70.2	Nickel	20	68
BD033025	Gas Tank Container	3	80	30.25	438.6	SS 316	55	131
BD033795	Gas Tank Container	3	80	37.95	550.3	SS 316	55	131
BD100600	Hydrogen Peroxide Gas Tank Container	10	250	6.00	87	SS 316	20	68
Other
Burst tolerance ±5% of stamped burst pressure Consult SUNPASS for other materials and pressure ratings

More Styles

Application Data

Advantages

Video

Comparison Vision

1. A location where the disc of a safety valve is prone to sticking or obstructing the valve's proper function.
2. A critical juncture for timely pressure relief in the event of a sudden increase in container pressure.
3. Areas that necessitate complete or unobstructed discharge capabilities.
4. Scenarios where the use of safety valves is not appropriate, making bursting discs the preferred option for pressure containment and release.
