Vermiculite-Enhanced Ceramic Fiber Cloth: Advanced Thermal Insulation Solution

Description:

Introducing the Premium TOP SEALING VERMICULITED CERAMIC CLOTH: A cutting-edge solution for superior thermal insulation. This advanced fabric stands out from traditional uncoated ceramic fiber with its minimal skin irritation, ensuring a more comfortable handling experience. It offers enhanced resistance to extreme temperatures, flames, and abrasion, making it an ideal choice for high-performance applications.

The innovative vermiculite coating forms an effective barrier against gases and liquids, providing an additional layer of protection. Moreover, the vermiculite-coated ceramic cloth is entirely non-flammable, adding to its safety credentials. Experience the difference with our TOP SEALING VERMICULITED CERAMIC CLOTH, designed for durability and reliability in the most challenging environments.

Vermiculite-Enhanced Ceramic Fiber Cloth: Advanced Thermal Insulation Solution

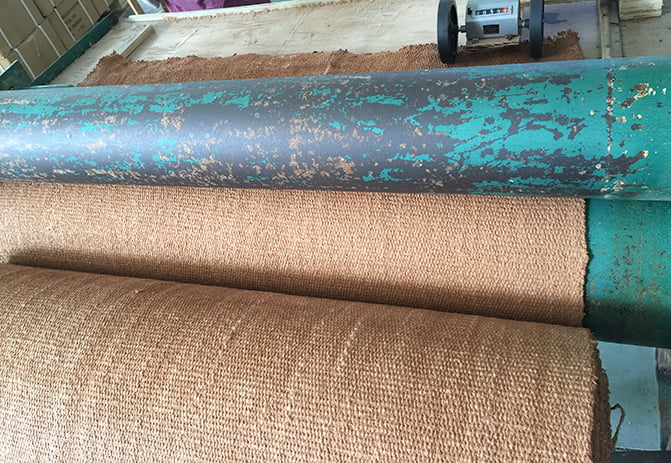

Detail Image

Product Details

Features:
· Non-Flammable
· Good thermal stability
· Excellent resistor to chemicals
· High percentage of room temperature properties

Size:
Thickness: 1.6MM-6MM 3mm width: 1000mm Length 30M per roll
Width: 200MM-1000MM 2.5mm width: 1000mm Length 30M per roll

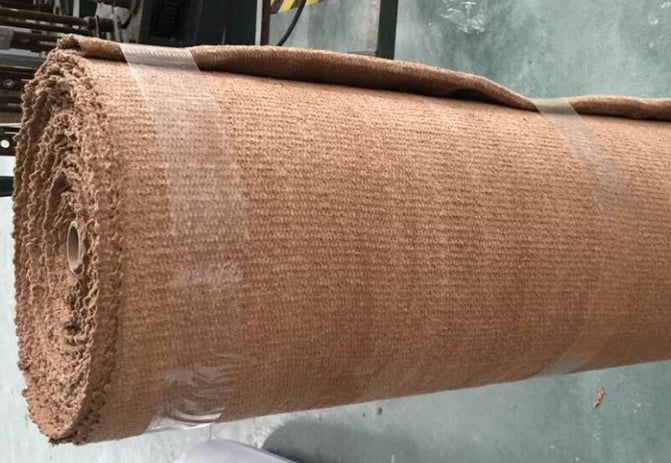

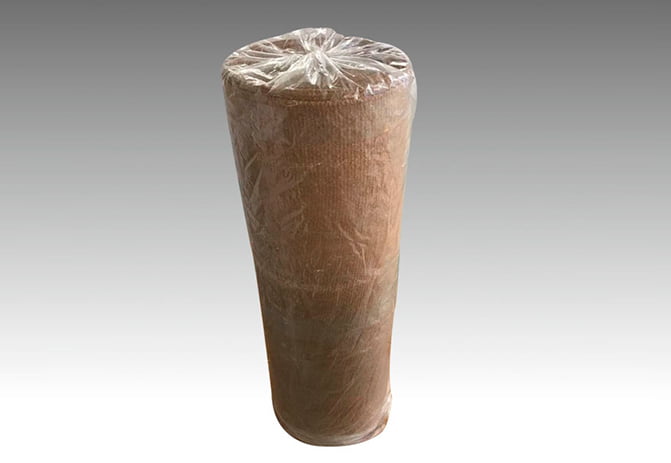

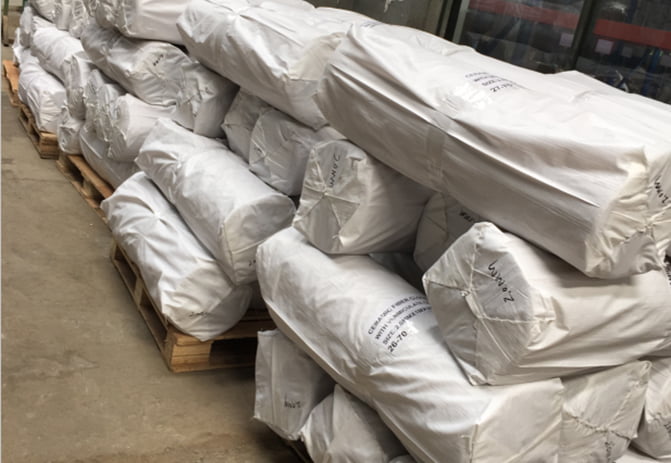

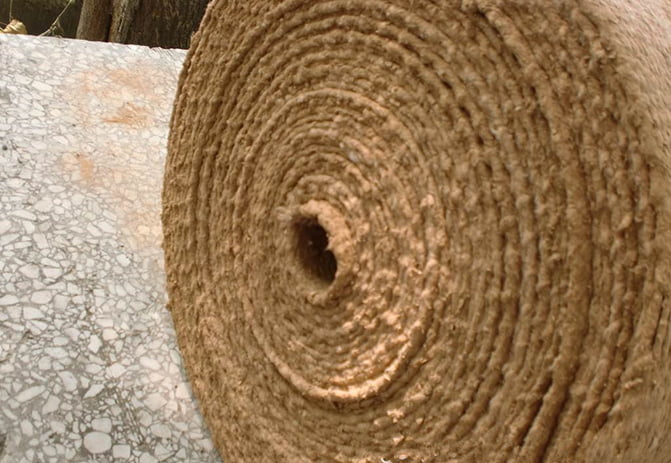

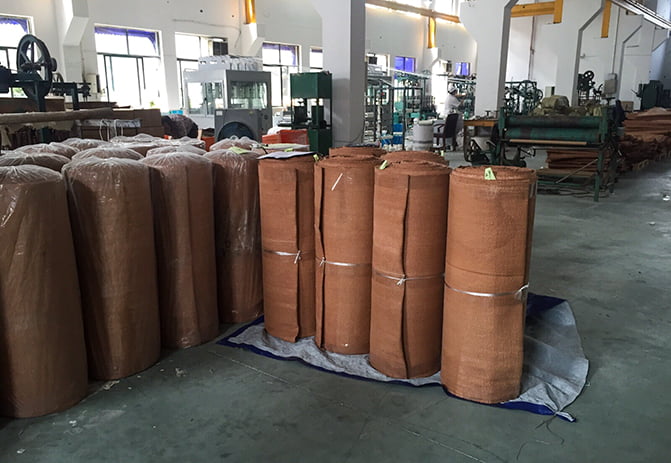

Package: 30M per roll with plastic woven bag

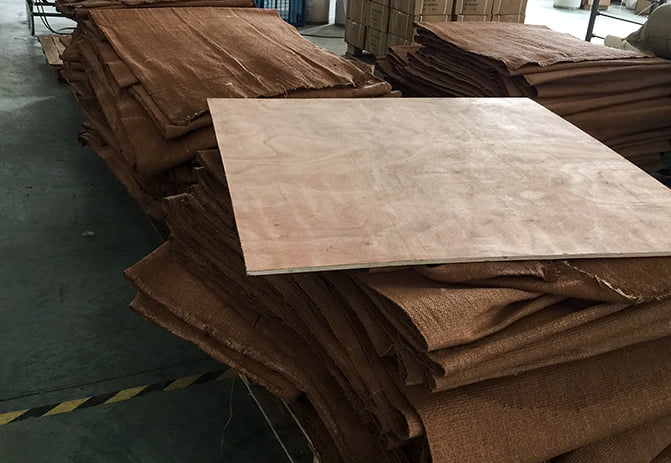

We also can made the finished fire proof blanket with holes to customers, such as 1MX2M per sheet.

Property	Description	Value
Chemical Composite	SiO2	38-46
	AL2O3	10-16
	MgO	16-35
	CaO	1-5
	K2O	1-6
	Fe2O3	6-13
	H2O	8-16
Color	Gold-Brown
Free Moisture	Maximum	0.50%
pH	-	7.0-9.5
Specific Gravity	2.5	-
Fusion Point	English	2200-2400℉
Fusion Point	Mteric	1200-1315℃

More Styles

Application Data

Advantages

Video

Comparison Vision

Property	Description	Value
		Ceramic Fiber Cloth With Fiber Glass Reinforced	Ceramic Fiber Cloth With Metal Reinforced
Working Temperature	Max Continuous Point	500-600℃ (932-1112℉)	1000℃ (1832℉)
	Melting Point	1450℃ (788℉)	1800℃ (982℉)
Density	English
	Metric
Fiber Diameter	-	2-5um
Thermal Conductivity	-	0.12-0.2w/(m.k)
Loss on ignition	-	<18%
Moisture Content	-	≤1
Organic Content	-	≤15
Coating	Vermiculite	-
Color	Tan	-
Thickness	English	0.06-0.24inch
	Metric	1.5-6mm
Width	English	0.8-40inch
	Metric	20-1000mm

Used in welding blankets, stress relieving, removable insulation covers, fire blankets, fire curtains, expansion joints, oven door seals, flue ducts, flue liner protection, Cable protection, Pipe wrap, High temperature gaskets.

Simply you can wholesale Vermiculite-Enhanced Ceramic Fiber Cloth: Advanced Thermal Insulation Solution direct from manufacturers.

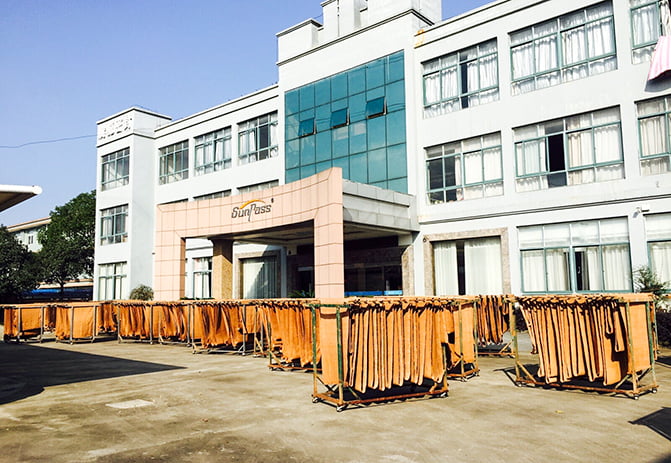

Professional Manufacturer
