For braided gland packing manufacturers, the final sealing performance does not start from the finished packing — it starts from the yarn.
Many people focus on the braiding structure, compression performance, or application environment when evaluating gland packing. However, the quality of the yarn used during production plays an equally important role.
A small difference in yarn quality can affect:
For manufacturers producing gland packing, choosing stable and reliable yarn is not only a material decision. It directly influences production efficiency and the performance of the final sealing product.
Gland packing is manufactured by braiding different types of yarn into a flexible sealing structure.

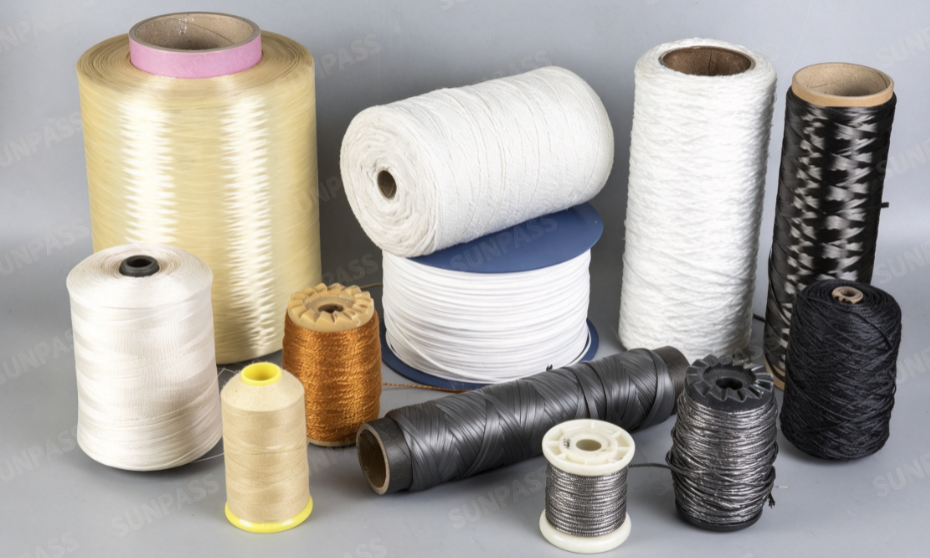

Common yarn materials include:
SUNPASS also offer Acrylic Fiber Yarn,Premium Cotton Yarn,Ramie Fiber Yarn, PTFE-Impregnated Aramid Yarn,Graphite-Infused PTFE Yarn,other Impregnated yarns can be Customized according to your need.
Each material provides different characteristics.
For example:
PTFE yarn is widely used because of its chemical resistance ,low friction characteristics ,excellent flexibility
Graphite yarn has high temperature resistance ,thermal stability ,good lubrication performance
Aramid yarn has high tensile strength ,excellent wear resistance ,mechanical durability
However, regardless of the material type, the basic yarn quality determines how effectively these properties can be transferred into the finished gland packing.

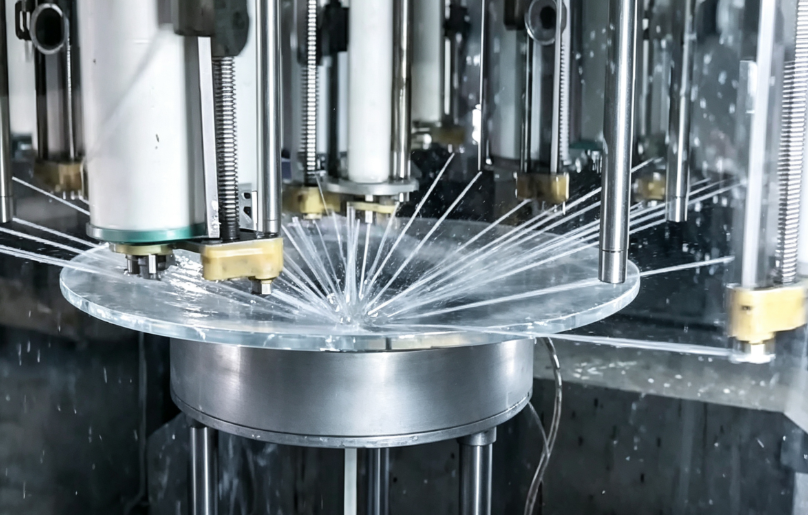

During gland packing production, yarn experiences continuous mechanical stress.
The yarn passes through : braiding carriers ,tension control systems , guiding components , compression processes . If yarn strength is inconsistent, manufacturers may experience:
frequent yarn breakage ,machine interruptions ,uneven packing structure ,increased production waste .
High-quality packing yarn should maintain stable tensile strength throughout the entire spool.
This consistency helps manufacturers achieve:
For packing manufacturers, stable yarn quality means more predictable production performance.
For PTFE impregnated yarn, the impregnation process is a critical factor.
A properly impregnated yarn provides:
Reduce friction during : braiding ,installation ,operation Lower friction improves handling performance and reduces wear.
Improved Flexibility
The right impregnation level allows yarn to remain flexible while maintaining strength.
More Stable Braiding
Uniform PTFE distribution helps yarn move smoothly through production equipment.

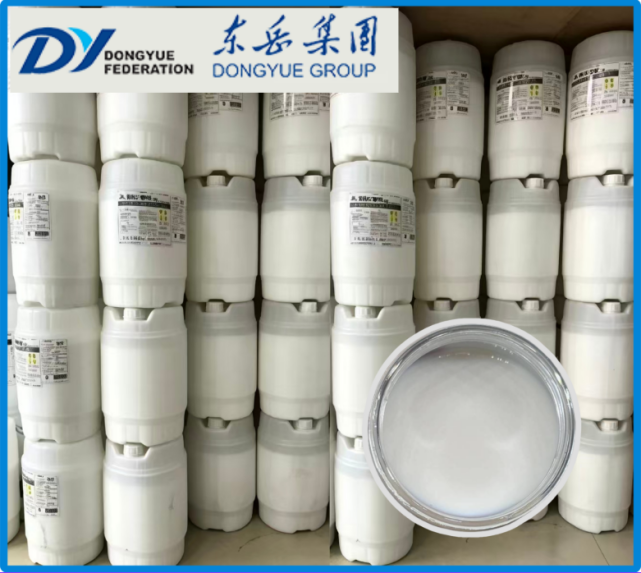

SUNPASS PTFE emulsions feature proprietary or highly optimized formulations. We conduct rigorous batch-by-batch inspections of the impregnating agent’s solid content, particle size distribution, viscosity, and stability. We use program-controlled ovens, and precise heating, holding, and cooling curves are key to forming a complete lubricating film, which directly determines the self-lubricating properties and wear resistance of the packing. We can provide test reports.
The structure of yarn affects how the final gland packing performs.
Important factors include:
High-quality yarn reduces premature wear caused by fiber damage or instability.
For this reason,SUNPASS In collaboration with leading fiber manufacturers, we focus on linear density, tensile strength, and elongation at break. By using high-purity, high-strength core raw materials, our products offer excellent resistance to temperature, pressure, and wear. They are suitable for complex industrial environments involving high and low temperatures, high pressure, and highly corrosive media. Even after long-term use, they resist deformation and aging, consistently maintaining stable sealing performance. The yarn offers moderate flexibility, allowing it to be flexibly cut and braided into packing products of various sizes to meet the interface requirements of different specifications of pipes, valves, pump bodies, and other equipment.
Different applications require different yarn characteristics.
A professional yarn supplier should understand not only the material itself but also how the yarn performs during gland packing production.
Core strengths: Full chemical resistance, ultra-low friction, clean non-contaminating sealing Applications: Corrosive fluid, food, pharmaceutical & fine chemical pumps, agitators and valves; graphite-filled PTFE yarn suits medium-temperature steam & solvent sealing.
Core strengths: High temperature resistance, thermal conductivity, self-lubrication Applications: High-temp steam boilers, thermal power, petrochemical high-pressure pumps; Inconel-reinforced graphite yarn works for ultra-high-temperature harsh working conditions.
Core strengths: Superior tensile strength, outstanding abrasion resistance, anti-extrusion reinforcement Applications: Slurry pumps, mining & pulp equipment with abrasive particle media; widely used as reinforcing yarn for composite packing.
Core strengths: High heat stability, conductive static dissipation, dual acid-alkali tolerance Applications: High-speed rotary equipment, high-pressure valves, flammable medium sealing in petrochemical & power industries.
Core strengths: Fireproof, electrical insulation, cost-effective asbestos replacement Applications: Low-pressure steam valves, general chemical pipelines, light-load static sealing.
Core strengths: Soft, low shaft wear, good water resistance & natural rot-proof performance Applications: Water treatment pumps, marine seawater equipment, low-pressure cold oil & neutral medium valves.
Core strengths: Flexible, high compressibility, stable weak acid & alkali resistance Applications: General water-oil pumps, sewage treatment, medium-temperature light-duty sealing equipment.
Core strengths: Soft texture, low cost, no shaft scratching Applications: Low-temperature clean water, light oil, food-grade low-pressure general sealing.
SUNPASS adopts high-purity and high-strength core fiber raw materials for all gland packing yarns, cooperating with top global fiber manufacturers. We strictly control core fiber indicators such as linear density, breaking strength, and elongation at break, laying a solid foundation for stable yarn performance.

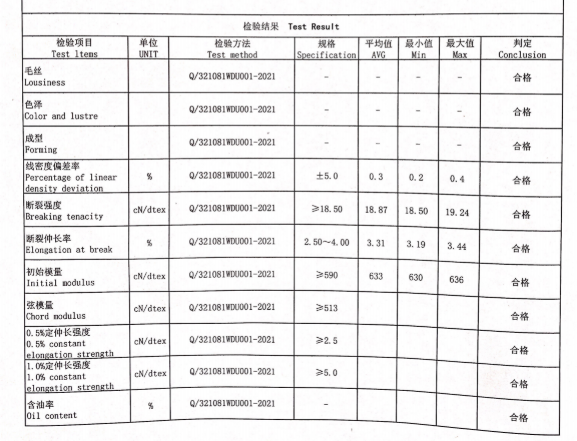

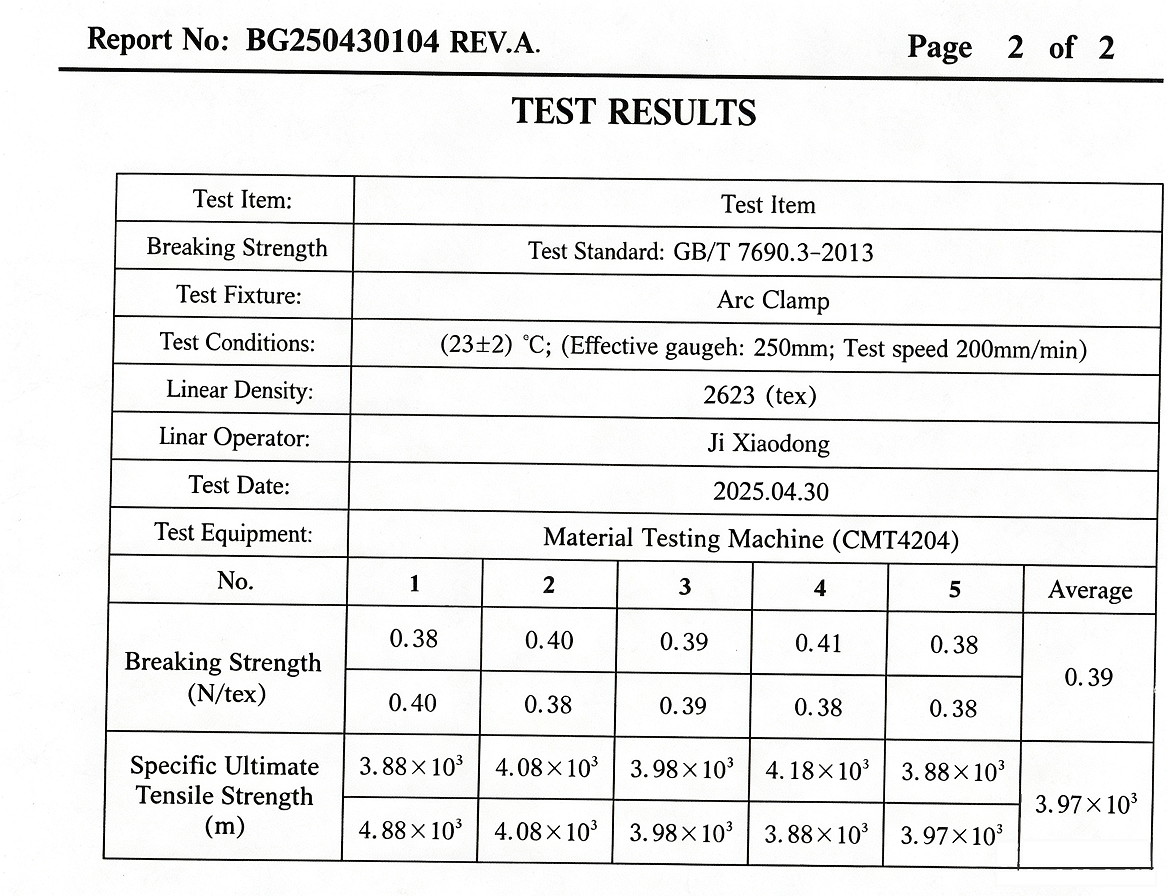

yarn performance TEST RESULTS
All yarns feature excellent temperature resistance, pressure resistance, and wear resistance, adapting to complex industrial working conditions including high & low temperature, high pressure, and strong medium corrosion. With moderate flexibility and superior dimensional stability, the yarns are not prone to deformation or aging during long-term operation, maintaining consistent sealing performance. They can be freely woven and tailored into gland packing products of various specifications for pipes, valves, pumps and other equipment, covering diverse industrial sealing demands.
To achieve stable and high-quality yarn performance, SUNPASS implements full-process standardized production and strict quality control. We independently develop and optimize professional impregnation formulas, including high-purity PTFE emulsion, graphite emulsion, and special lubricating grease. Each batch of impregnants undergoes rigorous testing on solid content, particle size distribution, viscosity and stability to ensure uniform lubrication and coating effect.

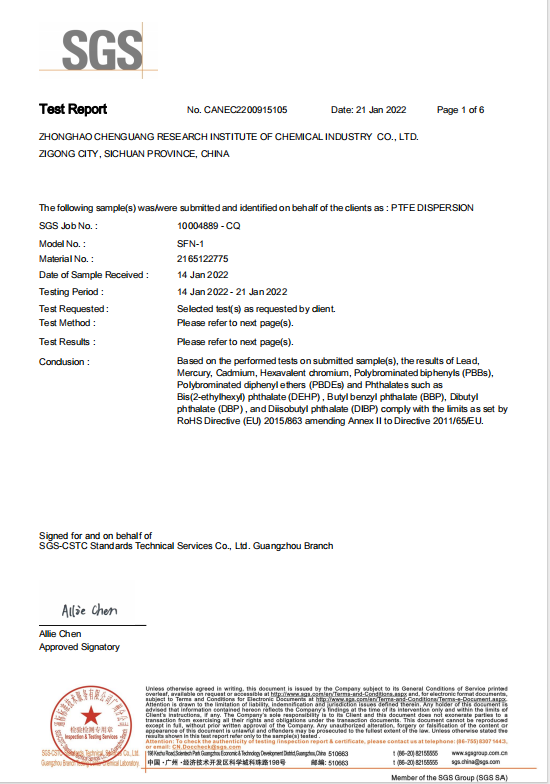

PTFE emulsion Certification
For PTFE and other sintered impregnation processes, we adopt program-controlled constant-temperature ovens with precise temperature rise, heat preservation and cooling curves. This mature process forms a complete and uniform lubricating film on the fiber surface, fundamentally improving the self-lubricating property and wear resistance of the finished yarns.
In addition, standardized weaving and finishing processes effectively reduce yarn breakage rate by more than 30% compared with ordinary yarns, minimizing raw material loss and production downtime caused by thread replacement, greatly improving production efficiency for both ourselves and downstream packing manufacturers.
All SUNPASS gland packing yarns are supported by complete and authoritative qualification documents, including tensile strength test reports, fiber material qualification certificates, and aging resistance test reports, making product quality traceable and verifiable. Strict performance tests prove our yarns possess far more reliable performance than ordinary industrial yarns:
High-temperature tensile resistance: Under a constant temperature of 250℃, ordinary fiber yarns lose 40% of tensile strength and are prone to breakage, while our aramid-based composite yarns only have an 8% strength reduction, with no breakage or fuzzing after 50 repeated bending tests.
Superior wear resistance: Tested on a standard friction tester (5N load, 1000r/min speed), ordinary yarns break after 1000 friction cycles, while SUNPASS yarns remain intact after 5000 cycles with a wear rate of only 12%.
Excellent medium stability: After 24-hour immersion in diesel oil, hydraulic oil and high-temperature water, ordinary yarns show a 15% weight change with obvious swelling and structural damage, while our yarns maintain a weight change rate of ≤2% with complete fiber structure and no deterioration.
Benefiting from superior material performance and precise production control, our yarn-extracted gland packings have a 40%-50% longer service life than ordinary products. This greatly reduces equipment replacement frequency, lowers customer operation and maintenance costs, and effectively avoids hidden losses such as finished product scrapping, customer returns and compensation claims caused by yarn quality defects.
SUNPASS provides one-stop professional pre-sales, in-sales and after-sales technical support for global gland packing manufacturers, delivering high-cost-performance sealing yarn solutions:
FAQ
What type of yarn is used for gland packing?
Common materials include PTFE yarn, graphite yarn, aramid yarn, and fiberglass reinforced yarn. The selection depends on application requirements such as temperature, chemical exposure, and mechanical conditions.
How does yarn quality affect gland packing?
Yarn quality affects braiding stability, packing density, sealing performance, wear resistance, and service life.
Why is PTFE impregnation important for packing yarn?
PTFE impregnation improves lubrication, flexibility, and processing performance during gland packing production.
Can better yarn reduce gland packing production costs?
Yes. Stable yarn quality can reduce machine downtime, material waste, and production adjustments.
How do I choose a gland packing yarn supplier?
Evaluate raw material quality, production consistency, impregnation technology, technical support, and experience with sealing applications.
