Why Is Expanded PTFE Sheet Used in Semiconductor Manufacturing? Purity, Chemical Resistance and Contamination Control

Engineers often overlook wet bench polymers until they leak or leach. Yet in semiconductor fabs, where a single particle can ruin a wafer batch, material selection is a critical operational and financial decision.This is why unplasticized, virgin expanded PTFE (ePTFE) sheet stock has become a baseline standard across major chip-making hubs. SEMI International Standards (Document SEMI F57-0301) establish extractable trace metal requirements for polymer materials used in ultrapure water and liquid chemical distribution systems, and high-grade fluoropolymer components are expected to meet stringent purity thresholds under standardized extraction testing.

1. Chemical Resistance in Wet Process Environments

In contrast, expanded PTFE sheet stock features a carbon-fluorine backbone protected by a dense fluorine atom sheath, combined with a multi-directional micro-fibril matrix that minimizes internal void pathways. This structure gives the material exceptional chemical inertness across a broad pH range from 0 to 14, preventing localized chemical attack and premature structural thinning.

SUNPASS expanded PTFE sheet unparalleled ability to withstand chemical attack and humid conditions makes it the ultimate sealing choice for wet, corrosive environments.

2. Low Surface Energy and Non-Stick Performance

A key property behind ePTFE's cleanroom suitability is its extremely low surface energy, approximately 18 dynes/cm. Very few substances can adhere to it, so harsh etching chemicals flow across the material surface without degrading the polymer chain or leaving organic residues. ePTFE's resistance to concentrated oxidizers at elevated temperatures is well documented in polymer science literature, supporting its use in continuous-immersion wet bench applications where long-term tensile and dimensional stability are required.

Additionally, the expansion process gives ePTFE greater conformability and flexibility compared to conventional skived solid PTFE stock, allowing it to seal uneven flange surfaces more effectively under lower bolt loads.

3. Micro-Contamination Control in Fluid Transport and Wafer Handling

Beyond chemical resistance, ePTFE's low friction and non-stick properties minimize particle generationfrom wear components like slide plates and tank liners. This prevents microscopic debris fromcontaminating sensitive photolithography chambers and CMP slurries.

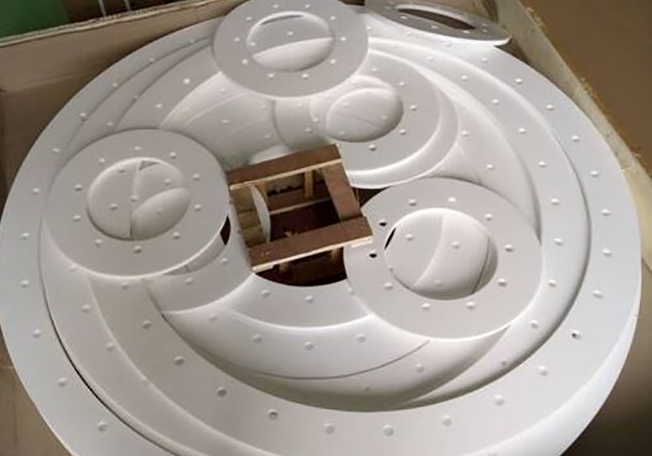

The fibrous, conformable nature of expanded gaskets made by expanded PTFE sheet also helps reduce micro-crevice fluid entrapment at flange interfaces, minimizing stagnant pockets where bacterial growth or chemical crystallization could occur. Proper joint torque retention using ePTFE gaskets further prevents micro-leaks during pressure fluctuations up to 6 bar (87 psi).

4. Thermal Stability in High-Temperature Chemical Distribution Modules

Semiconductor fabrication processes frequently require chemical heating loops operating continuously between 120°C and 200°C. Virgin expanded PTFE sheets maintain dimensional stability and mechanical creep resistance within these thermal bounds, reducing flange joint relaxation and the risk of vapor leaks.

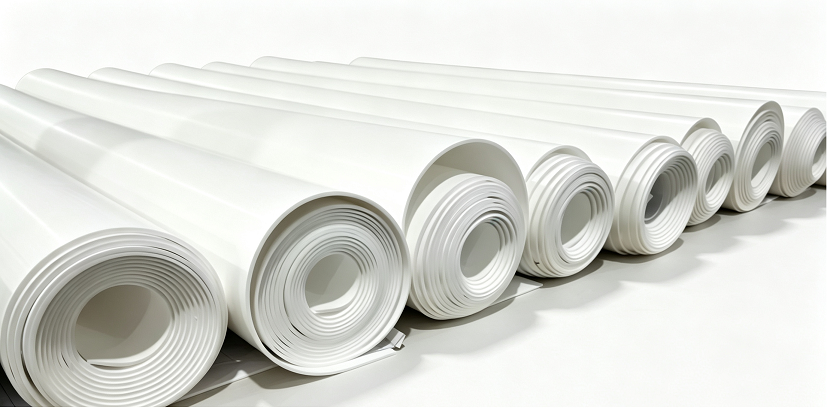

When fabricating tank linings and valve seats, suppliers typically use precision ePTFE sheets ranging from 1.5 mm to 6 mm in thickness, ensuring uniform density distribution and minimizing internal void defects across the panel area.

Why Choose SUNPASS Expanded PTFE

Selecting the right ePTFE supplier means eliminating the two biggest sealing killers: creep relaxation and chemical attack. SUNPASS delivers 100% virgin expanded PTFE sheets engineered to outperform standard PTFE and filled composites, offering the ultimate safety net for your most aggressive chemical, pharmaceutical, and food-grade applications.

① 100% Virgin PTFE, Zero Compromise

We use only premium-grade virgin PTFE resin with zero fillers or binders. This guarantees absolute chemical inertness across the entire pH 0–14 range, eliminating the risk of leaching, contamination, or binder failure that plagues filled PTFE sheets. Perfect for ultra-pure water, aggressive acids, and FDA/USP Class VI critical paths.

② Engineered Micro-Fibril Structure

Unlike brittle standard PTFE, our proprietary expansion process creates a highly oriented micro-fibril matrix. This structure delivers exceptional compressibility and recovery, effectively solving the cold-flow creep problem. It conforms to warped or damaged flange surfaces, maintaining seal integrity even under thermal cycling and vibration where solid PTFE fails.

③ Extreme Temperature & Pressure Resilience

Built for the harshest swings: -320°F to +600°F (-196°C to +315°C) with no embrittlement or melting. Our sheets maintain consistent sealing stress across this range, handling vacuum to Class 600+ pressures without extrusion or blowout, making them the universal gasket solution for multi-service plants.

④ Infinite Shelf Life & Zero Aging

SUNPASS ePTFE is chemically stable and UV-resistant. It never hardens, cracks, or degrades in storage or service. You get indefinite shelf life and long-term reliability, drastically reducing maintenance cycles and the risk of sudden seal failure due to material aging in harsh environments.

⑤ Precision Manufacturing & Custom Solutions

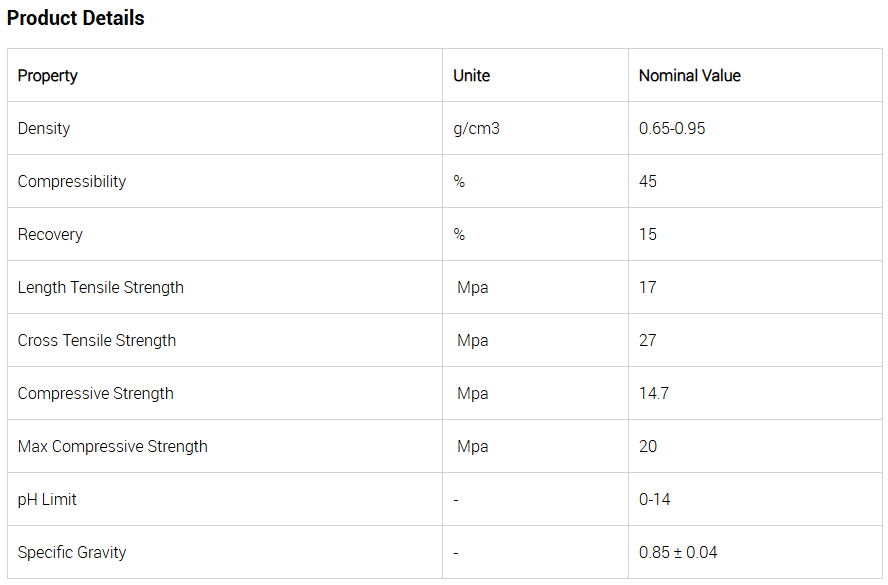

Every sheet undergoes strict thickness tolerance control (±0.002") and density verification. We offer multiple roll widths (50'/60'/100') for minimal waste and custom die-cutting for complex geometries. Backed by 20+ years of sealing expertise, our engineers provide on-site flange analysis and material selection to ensure you get the exact grade for your specific media and pressure class.

References

1. SEMI International Standards. SEMI F57-0301: Specification for Polymer Materials and Components Used in Ultrapure Water and Liquid Chemical Distribution Systems. https://www.semi.org
2. Wiley Online Library. Journal of Applied Polymer Science— fluoropolymer chemical durability studies. https://onlinelibrary.wiley.com
