Expanded PTFE Gaskets

Description:

Ultimate PTFE Gasket Excellence: Pure PTFE Gaskets for Extreme Conditions

Our top-sealing pure PTFE gaskets are crafted from 100% PTFE, utilizing a highly specialized treatment of PTFE fluorocarbon. These gaskets exhibit exceptional tensile strength, flexibility, and hardness, coupled with outstanding chemical and thermal resistance. This makes them the premier choice for gasket seals in the most challenging environments.

Our PTFE gaskets are designed to last, boasting an unlimited shelf life. They will not become brittle, age, or deteriorate over time, ensuring consistent performance and reliability in your applications.

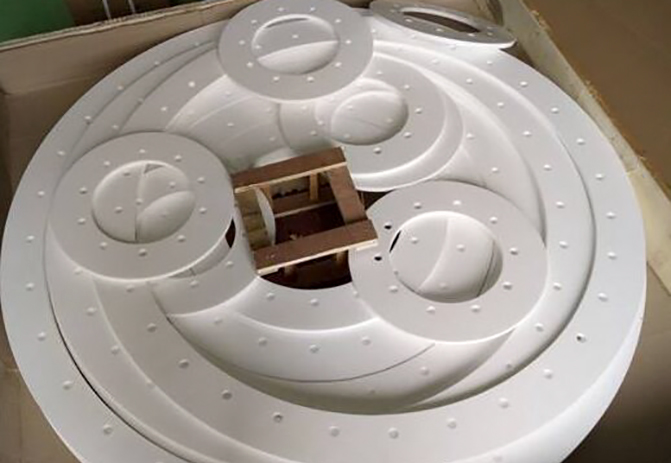

Detail Image

Product Details

Property	Unite	Nominal Value
Density	g/cm3	0.65-0.95
Compressibility	%	45
Recovery	%	15
Length Tensile Strength	Mpa	17
Cross Tensile Strength	Mpa	27
Compressive Strength	Mpa	14.7
Max Compressive Strength	Mpa	20
pH Limit	-	0-14
Specific Gravity	-	0.85 ± 0.04

More Styles

Application Data

Advantages

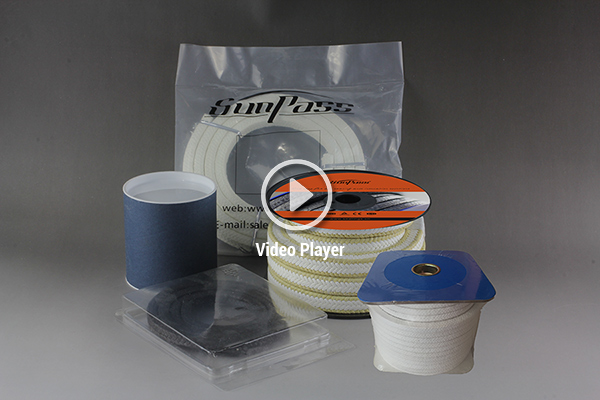

Video

Comparison Vision

Property	Description	Value
		English	Metric
Temperature	Minimum	-320°F	-196℃
	Maximum	600°F	315℃
Color	White	-	-
General Size	Thickness	0.02-0.3 inch	0.4-8 mm
	Sheet Size A Width: 50' ( 1270mm)	50' X 150' (1270mm X 3810mm) 50' X 50' (1270mm X 3810mm)
	Sheet Size B Width: 60' ( 1500mm)	60' X 160' (1500mm X 4100mm) 60' X 80' (1500mm X 2000mm) 60' X 53' (1500mm X 1350mm) 60' X 40' (1500mm X 1000mm) 60' X 180' (1500mm X 4600mm) 60' X 120' (1500mm X 3000mm) 60' X 60' (1500mm X 1500mm)
	Sheet Size C Width: 100'( 2700mm)	106' X 150' (2700mm X 3810mm)

Simply you can wholesale Expanded PTFE Gaskets direct from manufacturers.

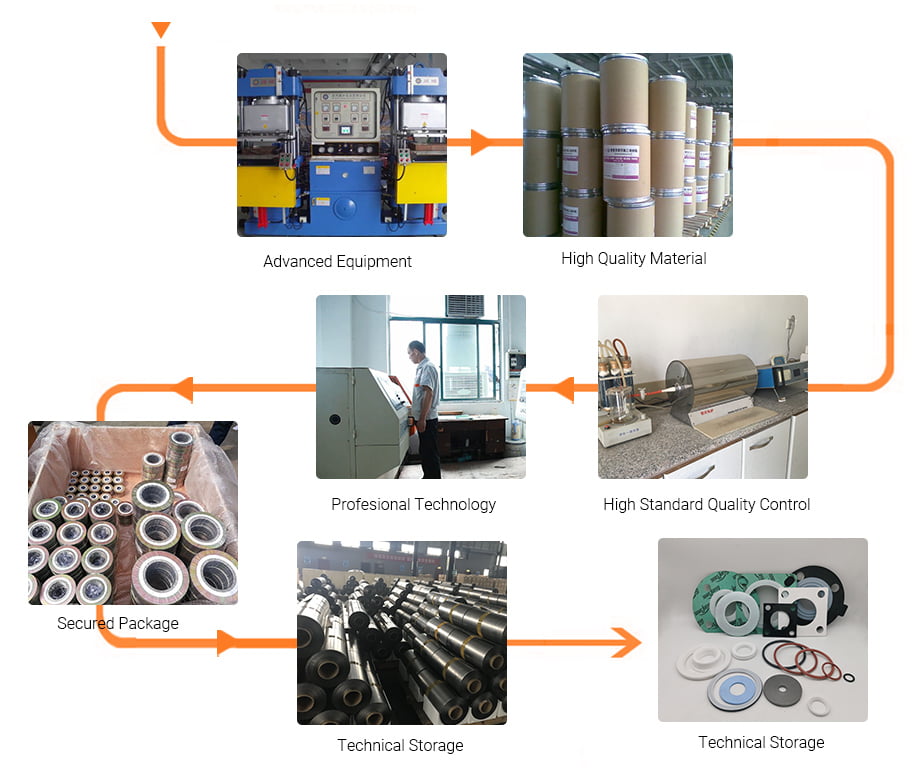

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Expanded PTFE Gaskets suppliers known by the world since 2000.
