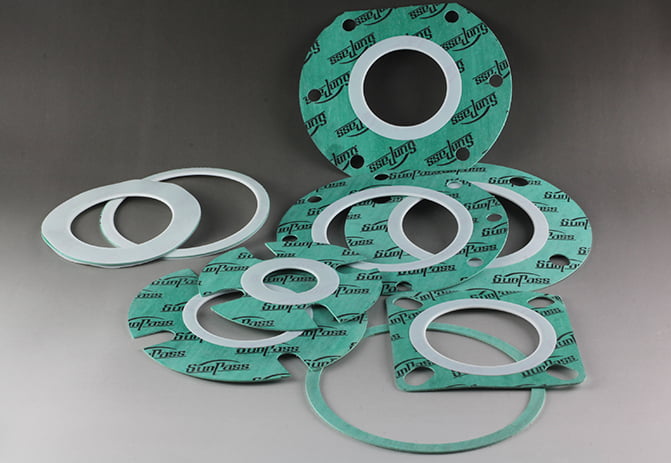

Non-Asbestos Rubber and PTFE Envelope Gaskets

Description:

Top-Sealing Non-Asbestos Rubber and PTFE Envelope Gaskets for Tank Container Applications: A Synergy of Chemical Inertness and Mechanical Strength

Our top-sealing non-asbestos rubber and PTFE envelope gaskets are specifically tailored for tank container applications, offering an optimal blend of chemical inertness and mechanical properties. These gaskets combine the purity and hygienic qualities of 100% virgin PTFE with the robustness of a compressed non-asbestos fiber sheet, ensuring a reliable seal in even the most demanding environments.

Detail Image

Product Details

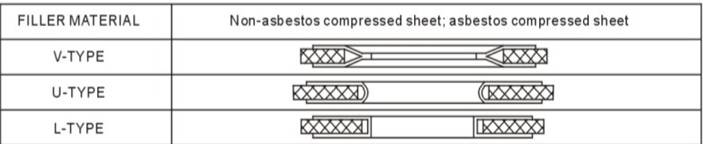

SUNPASS PTFE ENVELOPE GASKETS TYPES:

SUNPASS PTFE ENVELOPE GASKETS BROCHURE:

Service Capabilities:

Tank working pressure	4.4bar
Esaily meets tank test pressure	6.0bar
Maximum temperature	250℃

More Styles

Application Data

Advantages

Video

Comparison Vision

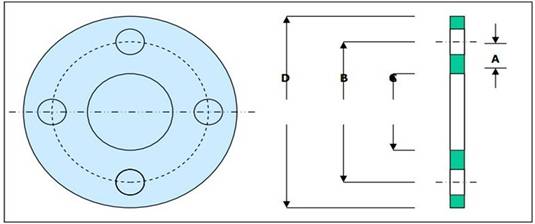

Type	Description	Thickness	No. of Holes	Holes	Internal Size	External Size	PTFE External Size
T702103	1.5” airline teflon seal (Fort vale)	3mm	4	10mmx103mmPCD	33mm	130mm	80mm
T702110	PTFE/CF envelope gasket 4 holes	3mm	4	18mmx160mmPCD	86mm	203mm	131.5mm
T702118	PTFE/CF envelope gasket 8 holes	3mm	8	18mmx178mmPCD	115.5mm	206mm	156mm
T702500	PTFE/CF envelope gasket 6 holes	3mm	6	18mmx166mmPCD	81mm	197mm	140mm
T702502U	PTFE/CF envelope gasket 6 holes	3mm	6	12mmx107mmPCD	69.5mm	127.5mm	91mm

PTFE envelope gaskets are designed for flanged joints handling aggressive fluid media that would swiftly destory the integrity of other mateiral and for duties with foodstuffs where cleanliness and non-contamination are essential

Simply you can wholesale Non-Asbestos Rubber and PTFE Envelope Gaskets direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Non-Asbestos Rubber and PTFE Envelope Gaskets suppliers known by the world since 2000.
