Advanced Ceramic Filler: High-Quality, Durable, and Thermally Efficient Insulation Solution

Description:

1. Our TOP SEALING ceramic fiber filler is meticulously cut from high-quality ceramic fiber paper, designed for use in demanding high-temperature insulation environments.
2. Utilizing advanced manufacturing techniques, we ensure an exceptionally even fiber distribution, with precise control over the paper's thickness and uniformity.
3. Constructed from refractory ceramic fiber and a scientifically selected, minimal bonding agent, our ceramic fiber paper is crafted with stringent quality control measures.
4. The bonding agent is completely combusted during use, resulting in a product free of asbestos. It is an ideal material for sealing and insulation, offering both safety and performance.

Advanced Ceramic Filler: High-Quality, Durable, and Thermally Efficient Insulation Solution

Detail Image

Product Details

1. **Ultra-Low Thermal Conductivity for Superior Insulation**
2. **Exceptional Corrosion Resistance for Longevity and Durability**
3. **Ideal for Die-Cutting and Automated Stamping Processes**
4. **Lightweight and Flexible for Enhanced Handling Strength and Uniformity**

DescriptionGrade		STD	HP	HA	HZ
TENGLONG style		4210STD	4210HP	4210HA	4210HZ
Classification Temperature	English	2300℉	2300℉	2562℉	2606℉
Classification Temperature	Metric	1260℃	1260℃	1350℃	1430℃
Max Operating Temperature	English	1472℉	1922℉	2192℉	2552℉
Max Operating Temperature	Metric	800℃	1050℃	1200℃	1400℃
Density	English	12.5±0.625lb/ft3
Density	Metric	200±10kg/m3
Thickness	English	0.04-0.24
Thickness	Metric	1-6mm
Color		White
Package		Carton box

Remarks: The data above is for reference. The Max. temp. depends on the working conditions.

More Styles

Application Data

Advantages

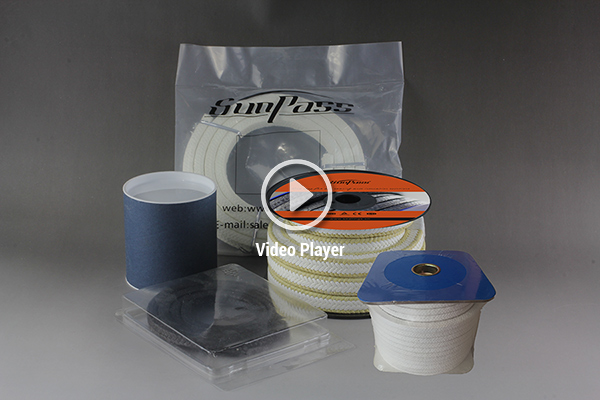

Video

Comparison Vision

DescriptionGrade		STD	HP	HA	HZ
TENGLONG Style		4210STD	4210HP	4210HA	4210HZ
Classification Temperature	English	2300℉	2300℉	2562℉	2606℉
Classification Temperature	Metric	1260℃	1260℃	1350℃	1430℃
Chemical Composition	Al2O3	43%	47%	55%	38%
	SiO2	53%	51%	44%	44%
	Fe2O3 + Ti2O3	≤1.2	≤0.3	≤0.3	≤0.2
	CaO + MgO	≤0.3	≤0.3	≤0.3	≤0.2
	NaO + KO2	≤0.5	≤0.3	≤0.3	≤0.2
Thermal Conductivity by mean temp. (250kg/m3)	200℃	0.055~0.065W/m.k.		0.060~0.070W/m.k.
	400℃	0.110~0.120W/m.k.		0.105~0.125W/m.k.
	600℃	0.160~0.170W/m.k.		0.170~0.180W/m.k.
Shrinkage on Heating		800°(1472℉) ×24h ≤-3%	1000°C(1832℉) ×24h ≤-3%	1280°C(2336℉) ×24h ≤-3%	1400°C(2552℉) ×24h ≤-3%
Tensile Strength		≥0.3MPa
Organics Content		≤9
Loss of Ignition		≤10%
LOI		< 9%
