PTFE Valve Stem Packing: High-Performance Sealing Solution for Industrial Valves

Description:

"TOP SEALING PTFE VALVE STEM PACKING: Exceptional Performance with Uncentered PTFE"

Our TOP SEALING PTFE Valve Stem Packing is crafted from uncentered PTFE, a material renowned for its exceptional chemical resistance, capable of withstanding exposure to a wide array of chemicals and solvents, with the notable exception of alkaline substances. This high-performance packing offers robust resistance to elevated pressures and boasts remarkable thermal stability, making it an ideal choice for demanding industrial applications.

The expanded PTFE tape is not only odorless and tasteless but also complies with stringent safety standards, ensuring its suitability for use in food processing environments. With its combination of durability, reliability, and safety, our PTFE valve stem packing is the go-to solution for maintaining airtight seals in various valve applications.

PTFE Valve Stem Packing: High-Performance Sealing Solution for Industrial Valves

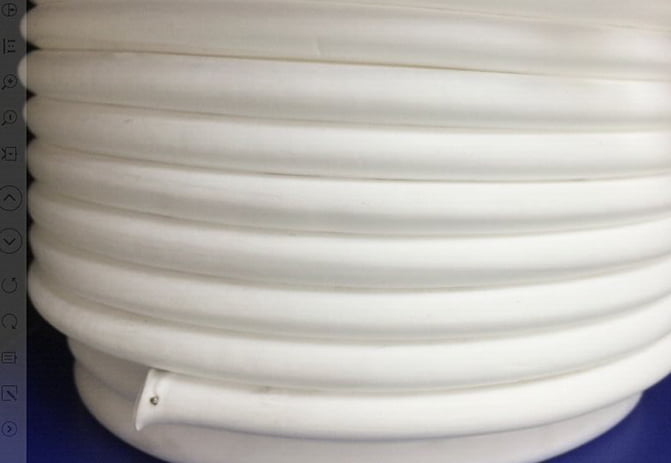

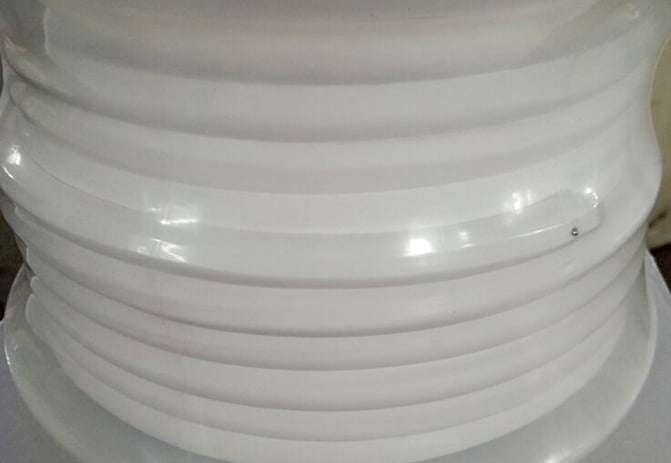

Detail Image

Product Details

Description Item		PTFE (Polytetrafluoroethylene)
Description Item		English	Metric
Tensile strength		1,500-3,000psi	103-206bar
Flexural modulus		72,000psi	4964bar
Izod Impact	Notched	3.5ft-lbs/in	7KJ/m2
Heat Deflection Temperature	at 66 psi	250℉	120℃
Continuous Temperature	Maximum	500℉	260℃
Water Absorption	Immersion 24 hours	<0.01%
Coefficient of Linear Thermal Expansion		8.9in/in/ºFx10-5
Coefficient of Friction	Dynamic	0.1

More Styles

Application Data

Advantages

Video

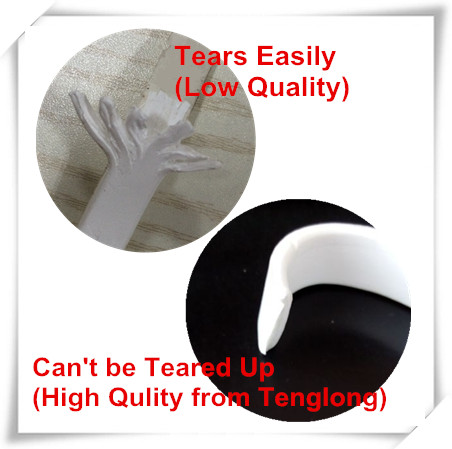

Comparison Vision

Property	Description	Value
Property	Description	English	Metric
Material	100% Expanded PTFE	-	-
Color	White	-	-
Temperature Limits	Continuous	-450℉ to 525 ℉	-268℃ to 273 ℃
Temperature Limits	Intermittent	-450℉ to 600℉	-268℃ to 315℃
Tensile Strength		1015Psi	7Mpa
Elongation at Break	-	140%
pH range	-	0-14
Compressibility	-	52%
Salability	-	0.03ml/hr
Size	Thickness	0.08-0.4in	2-10mm
	Width	0.1-1.6in	3-40mm
	Length	195in, 390in, 590in, 787in	5m, 10m, 15m, 20m

Simply you can wholesale PTFE Valve Stem Packing: High-Performance Sealing Solution for Industrial Valves direct from manufacturers.

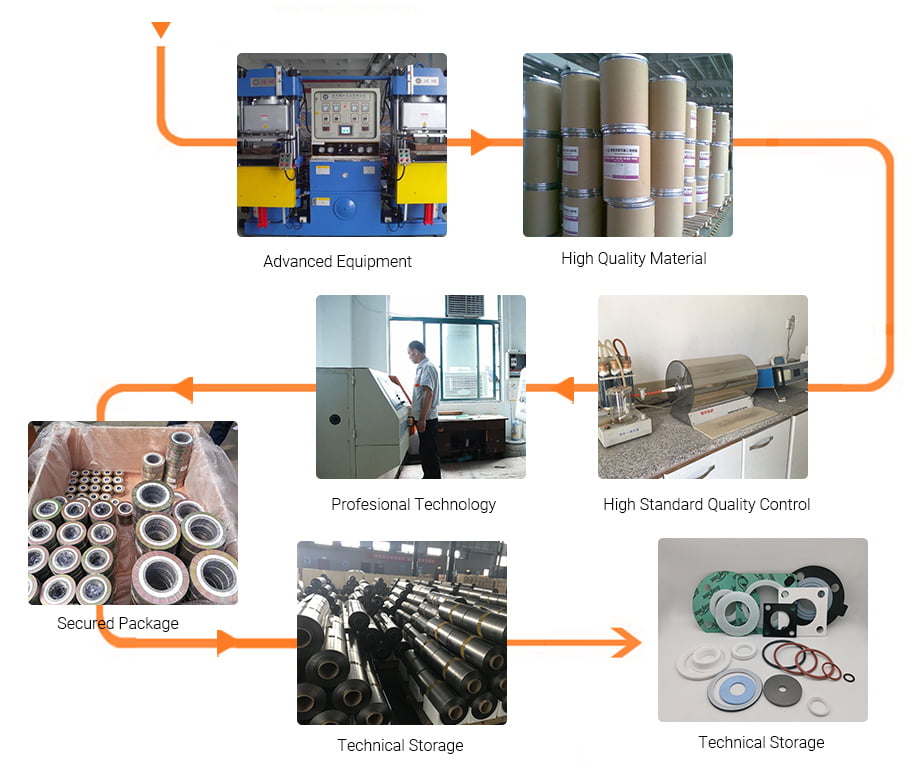

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and PTFE Valve Stem Packing: High-Performance Sealing Solution for Industrial Valves suppliers known by the world since 2000.
