Home / Products / Gland Packing / Carbon Gland Packing / PTFE-Infused Carbonized Fiber Gland Packing for Superior Sealing Solutions

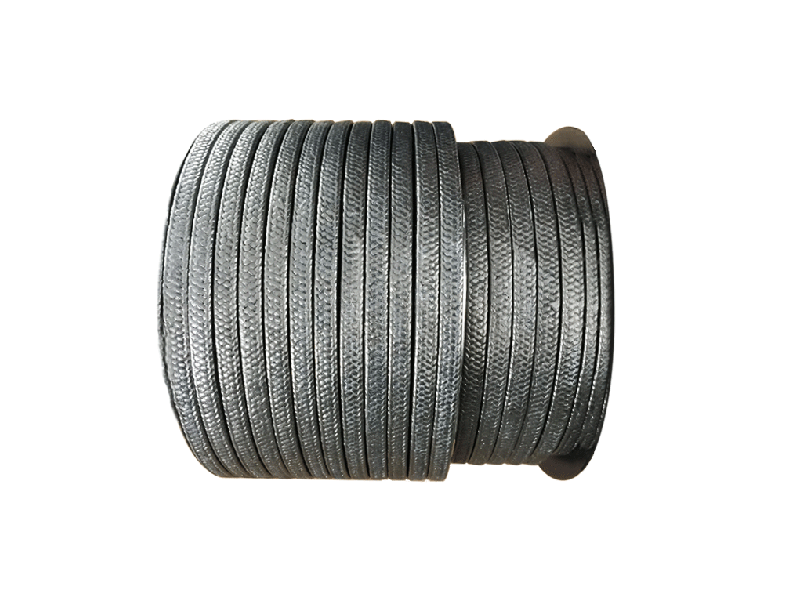

PTFE-Infused Carbonized Fiber Gland Packing for Superior Sealing Solutions

Description:

1. TOP SEALING PTFE Impregnated Carbonized Fiber Gland Packing STYLE 5600 is meticulously crafted from carbonized polyacrylonitrile fiber, enhanced with PTFE dispersion and infused with a specialized lubricant for superior performance.

2. Designed to seal a variety of fluids including water, brine, industrial waste, saline solutions, weak acids, and mineral oils, the STYLE 5600 is ideal for use in centrifugal pumps, mixers, agitators, and stern tubes, among other applications. It exhibits exceptional inertness to a broad spectrum of corrosive chemicals, offering a wide range of applications. As a relatively cost-effective alternative within the non-asbestos packing category, it can effectively replace PTFE asbestos packing across a diverse service spectrum. Particularly, it stands out as an ideal choice for applications in the paper mill industry.

PTFE-Infused Carbonized Fiber Gland Packing for Superior Sealing Solutions

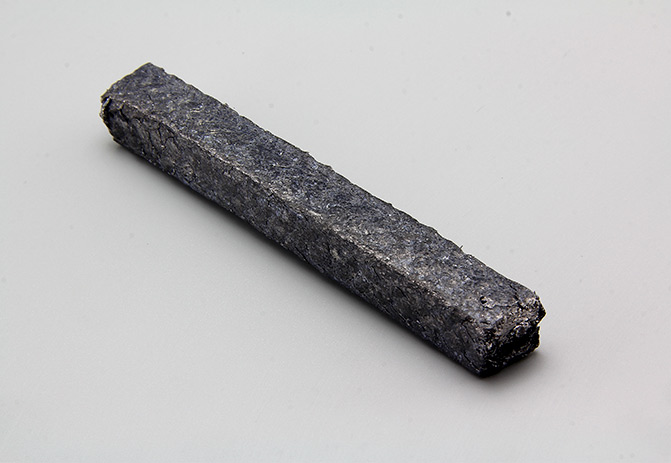

Detail Image

Product Details

Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request

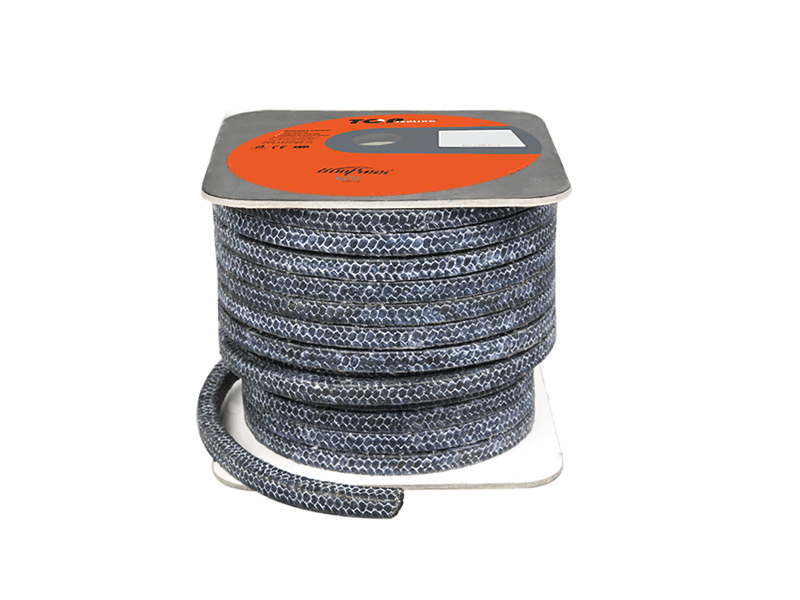

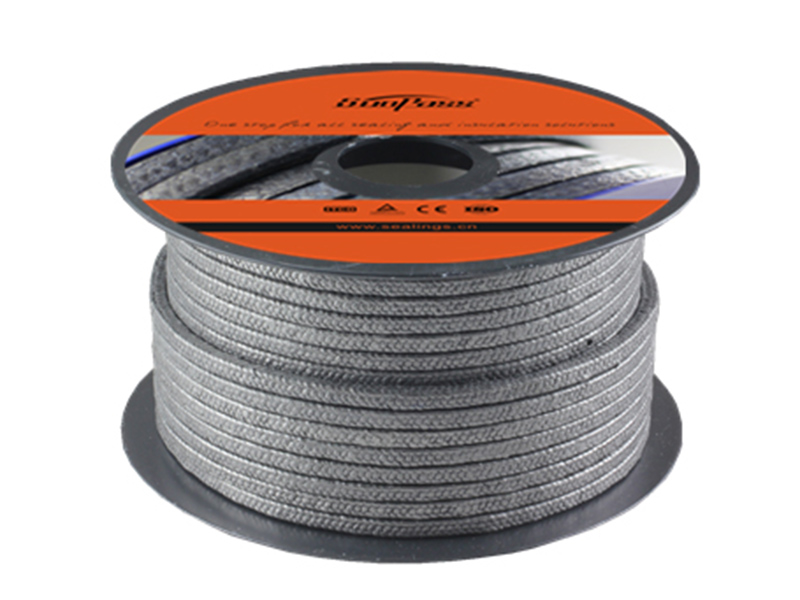

More Styles

Application Data

Advantages

Video

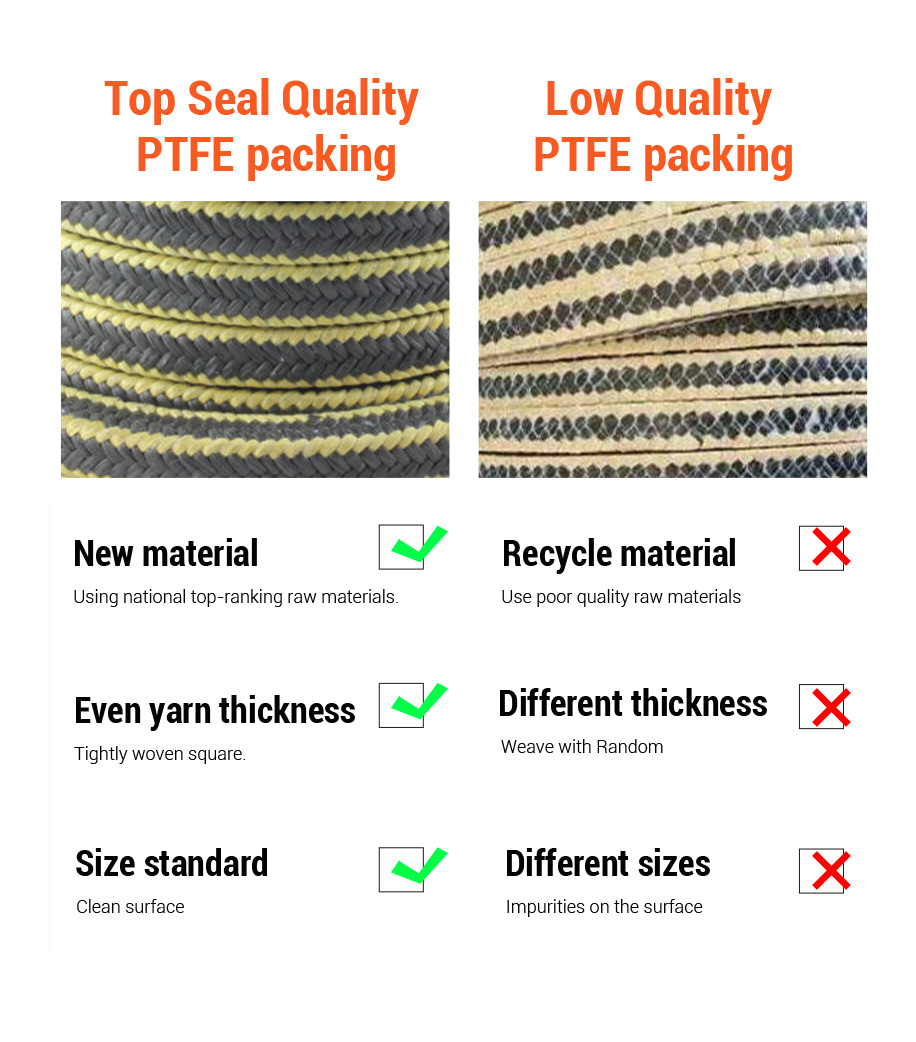

Comparison Vision

STYLE 5600
Pressure: bar	30	100	100
Speed: m/s	25	2	—
PH Range	2-12
Temp.℃	Max. +300
Density: (g/cm³)	1.3
Size	1/8"-2"
Size	3mm-50mm

STYLE 5600W
Pressure: bar	20	100	180
Speed: m/s	22.8	3	—
PH Range	2-12
Temp.℃	-180 to +260
Density: (g/cm³)	1.35-1.40
Size	1/8"-2"
Size	3mm-50mm

Style 5600 Carbonized Fiber PTFE Packing is a versatile sealing solution, ideal for use in pumps, agitators, mixers, kneaders, centrifugal pumps, sliders, and stirring equipment, as well as in various applications within the paper mill industry. This high-performance packing is well-suited for a wide range of liquid and gaseous media, including acids, alkalis, solvents, adhesives, and abrasive or crystalline substances such as sewage.

Simply you can wholesale PTFE-Infused Carbonized Fiber Gland Packing for Superior Sealing Solutions direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and PTFE-Infused Carbonized Fiber Gland Packing for Superior Sealing Solutions suppliers known by the world since 2000.
