Home / Products / Gland Packing / Gland Packing Materials / High-Performance Ceramic Fiber Yarn

High-Performance Ceramic Fiber Yarn

Description:

Introducing the 'TOP SEALING Ceramic Fiber Yarn 4000Y,' meticulously crafted from premium alumina-silica ceramic fibers. This yarn is meticulously twisted to enhance its tensile strength, ensuring durability and reliability in use.

Available in a range of denier options from 425 tex to 2500 tex, the yarn can be reinforced with E-glass or stainless steel wire, offering versatility in strength and application. It is offered in single, two, or three plies, catering to various industrial needs.

The 'TOP SEALING Ceramic Fiber Yarn 4000Y' can be woven or plaited into a multitude of product forms, showcasing its strength, chemical stability, and exceptional thermal performance. It is the ideal choice for a wide array of industrial high-temperature applications, delivering unmatched performance and resilience.

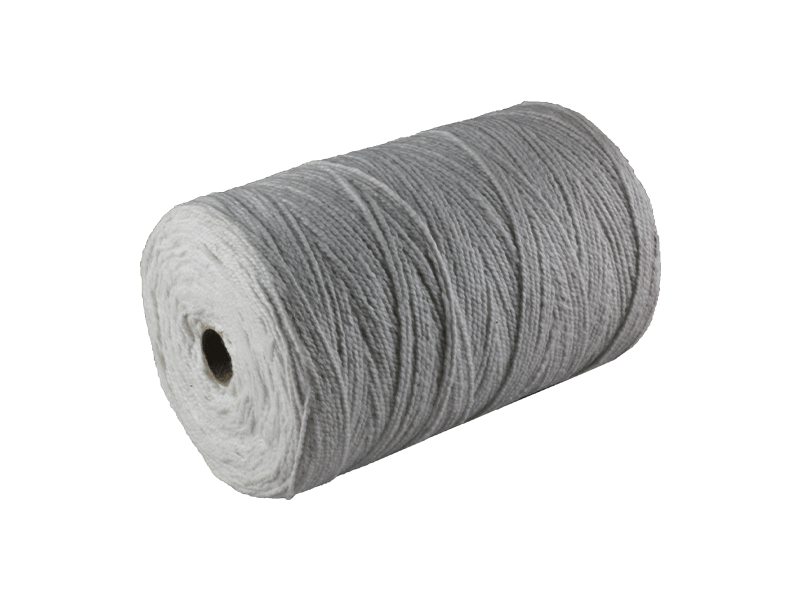

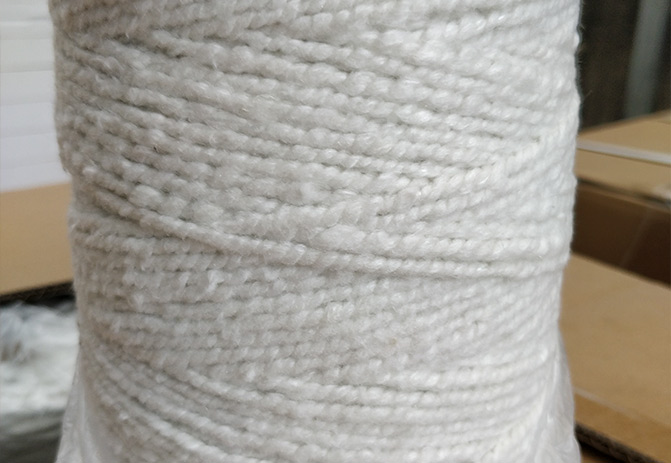

Detail Image

Product Details

DescriptionItem		Ceramic Fiber Yarn With Fiber Glass Reinforced	Ceramic Fiber Yarn With Metal Reinforced
TENGLONG style		4000Y	4000YS
Reinforced Material		Glass Filament	Stainless Steel
Classification Temperature	English	2300℉	2300℉
	Metric	1260℃	1260℃
Maximum Operating Temperature	English	932-1112℉	1832℉
	Metric	500-600℃	1000℃
High-temperature Loss on Lgnition		15-25%	10-20%
Chemical Stability		Good	Good
Electrical Insualtion Property		Better	Good
Strength		Good	Better

More Styles

Application Data

Advantages

Video

Comparison Vision

DescriptionStyle No.		4000Y	4000YS
Reinforced Material		Glass Filament	Stainless Steel
Colour		White
Fiber diameter		2-4um
Fiber Length		100-200mm
Thinckess		425tex to 2500tex in single, two or three plies
Density	English	18.75-43.75ib/ft3
	Metric	300-700kg/m3
Chemical Composition	Al2O3+SiO2	≥97%
	Al2O3	≥48%
	Fe2O3	≤1.1%
Water Content		≤1
Organics Content		≤15
Thermal Conductivity	300℃/572℉	0.12~0.13w/m.k
	600℃/1112℉	0.13~0.16w/m.k
	1000℃/1832℉	0.17~0.20w/m.k
Heating Liner Shringkage		≤3.5(1000℃×3h)
Acid-resistance & Alkali-Resistance	10% NaOH After 72 hours	50%
	10% N2SO4 After 72 hours	50%

Simply you can wholesale High-Performance Ceramic Fiber Yarn direct from manufacturers.
