Ultimate Guard Super Tank Lid Seal

Description:

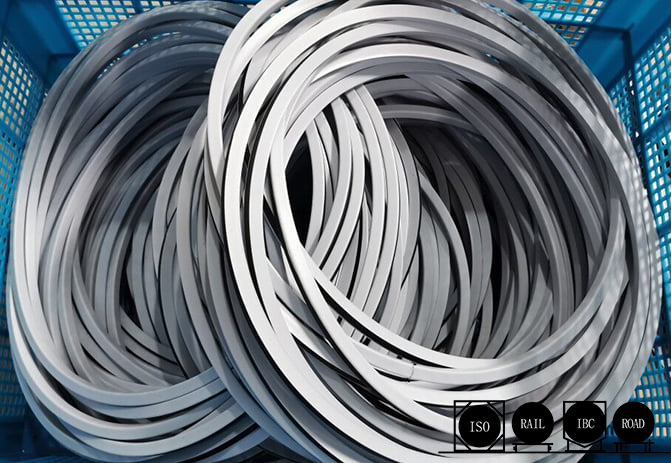

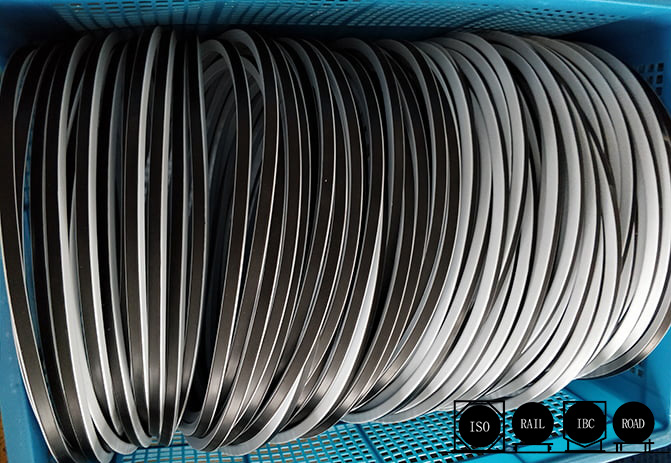

Introducing the SUNPASS Super Tank Lid Seal EP00001, a premium sealing solution that fuses the exceptional resilience and compression set resistance of EPDM rubber with the unparalleled chemical resistance of PTFE. This innovative seal features a rectangular elastomeric core meticulously enveloped on three sides with 100% virgin PTFE, ensuring optimal sealing performance on the top and bottom sealing faces, as well as along the inside diameter.

Detail Image

Product Details

Chemical Properties

1. **Chemically Inert Sealing Surfaces**: The PTFE envelope ensures that the sealing faces and inside diameter are chemically inert, providing compatibility with a wide range of media from pH 0 to 14. This makes it suitable for handling all bulk liquid cargoes across all IMO classes, ensuring safe and reliable sealing performance.

2. **High-Quality Virgin PTFE**: The use of 100% virgin PTFE ensures that the seal is non-absorbent, non-tainting, and hygienic. These properties make it an ideal choice for applications involving foodstuffs and edible oils, guaranteeing purity and safety in the storage and transportation of sensitive materials.

More Styles

Application Data

Advantages

Video

Comparison Vision

Available temp	-50℃ to +150℃
Design Pressure	Class 150, PN 2.0 Mpa
Standard Of Compression Ratio	20%-30%
Standard Spring Rate	≥10%
Standard Leak Rate	≤1.0*10-2
Stress Relaxation	≤45

Simply you can wholesale Ultimate Guard Super Tank Lid Seal direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Ultimate Guard Super Tank Lid Seal suppliers known by the world since 2000.
