Premium Ceramic Fiber Insulation Blanket

Description:

**"Top Sealing Ceramic Fiber Blanket: Exceptional Insulation for Industrial Applications"**

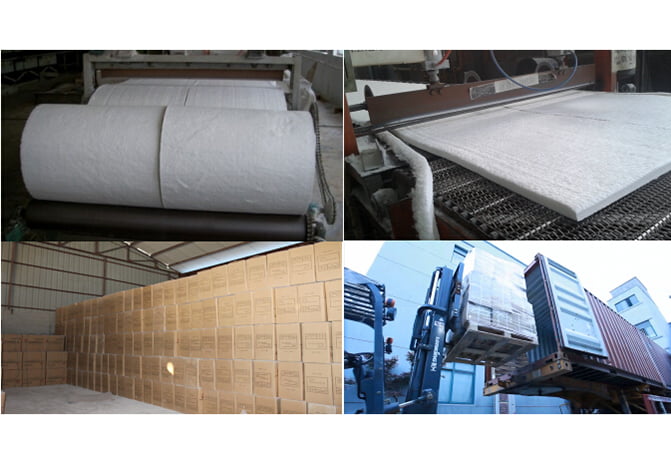

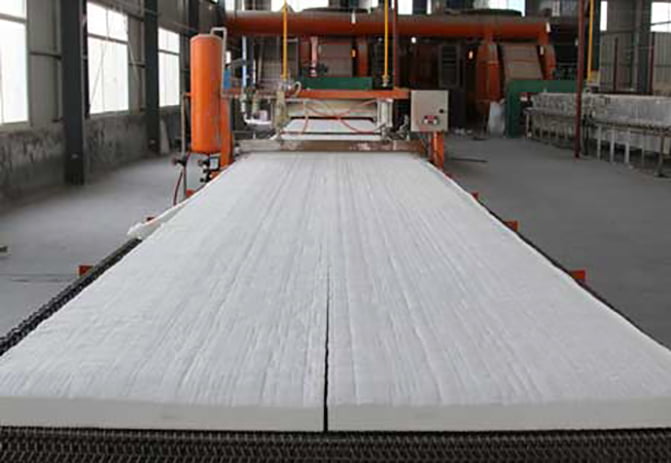

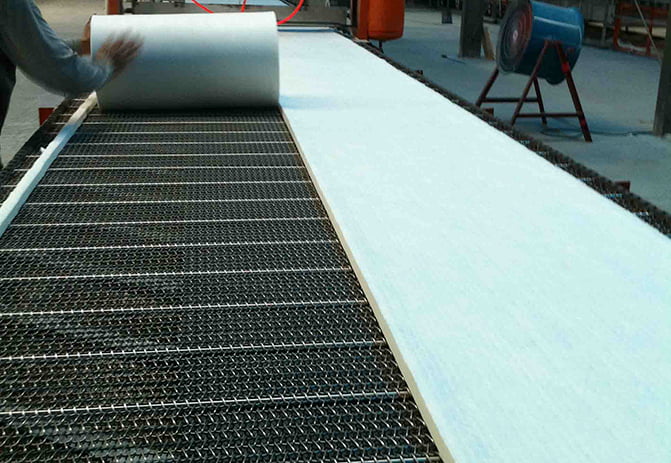

Crafted from premium bulk fibers, our Top Sealing Ceramic Fiber Blanket is produced using the most advanced spinning techniques. This process ensures exceptional fiber length and uniform distribution, creating blankets with controlled density, high tensile strength, and remarkable resiliency.

Our blankets boast superior acoustic and thermal insulation properties, making them the ideal choice for a variety of applications. Specifically designed for use in furnaces, boiler ducts, and stack linings, they offer low thermal conductivity and minimal heat storage. These features not only enhance energy efficiency but also allow for shorter cycle times and facilitate quicker access for maintenance, ensuring your operations run smoothly and efficiently.

Experience the difference with our Top Sealing Ceramic Fiber Blanket – the epitome of quality and performance in industrial insulation solutions.

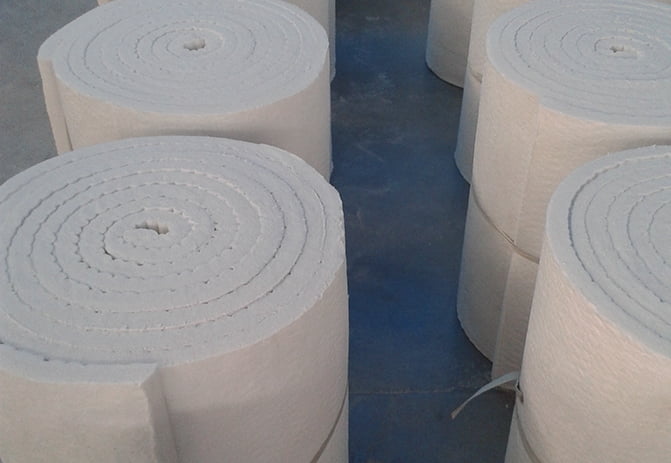

Premium Ceramic Fiber Insulation Blanket

Detail Image

Product Details

DescriptionGrade		COM	STD	HP	HA	HZ
TENGLONG style		4220C	4220ST	4220HP	4220HA	4220HZ
Classification Temperature	English	1922℉	2300℉	2300℉	2480℉	2606℉
Classification Temperature	Metric	1050℃	1260℃	1260℃	1360℃	1430℃
Operating Temperature	English	<1832℉	<1922℉	<2010℉	<2192℉	<2462℉
Operating Temperature	Metric	<1000℃	<1050℃	<1100℃	<1200℃	<1350℃
Color		White	Spotlessly White	Spotlessly White	Spotlessly White	Spotlessly White
Density	English	6 lb/ft³-8 lb/ft³	6 lb/ft³-8 lb/ft³	6 lb/ft³-8 lb/ft³	8 lb/ft³-10 lb/ft³	8 lb/ft³-10 lb/ft³
Density	Metric	96-128kg/m³	96-128kg/m³	96-128kg/m³	128-160kg/m³	128-160kg/m³
Specification	English	283.46×24.02×0.98inch; 141.73×24.02×1.97inch
Specification	Metric	7200×610×25mm; 3600×610×50mm Other Size can be made on request.

More Styles

Application Data

Advantages

Video

Comparison Vision

DescriptionGrade		COM	STD	HP	HA	HZ
TENGLONG style		4220C	4220ST	4220HP	4220HA	4220HZ
Classification Temperature	English	1922℉	2300℉	2300℉	2480℉	2606℉
Classification Temperature	Metric	1050℃	1260℃	1260℃	1360℃	1430℃
Fiber Diameter		3.5um	3.5um	3.5um	3.5um	3.5um
Tensile Strength (MPa)		0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12
Chemical Composition	Al2O3	44%	46%	47-49%	52-55%	39-40%
	Al2O3+SiO2	96%	97%	99%	99%	-
	Al2O3+SiO2+ ZrO2	-	-	-	-	99%
	ZrO2	-	-	-	-	15-17%
	Fe2O3	<1.2%	<1.0%	0.20%	0.20%	0.20%
	Na2O+K2O	≦0.5%	≦0.5%	0.20%	0.20%	0.20%

Mainly serve as the ceramic fiber lining for industrial furnaces, heating equipment and high- temperature pipelines, such as Metallurgy Industry: heating furnaces, heat treatment furnaces and ladle insulated cover Mechanism industry: thermal insulation material for electric power boilers, gas turbine engine and nuclear power plant "Petrochemical industry: the lining of high-temperature reaction equipment and heating equipment in chemical fields, like converting furnaces, constant/reduced pressure furnaces, cracking furnaces, flue lining." Ceramics and electro ceramics: roller hearth furnaces, tunnel furnaces , shuttle furnaces and other kinds of furnaces

Simply you can wholesale Premium Ceramic Fiber Insulation Blanket direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Premium Ceramic Fiber Insulation Blanket suppliers known by the world since 2000.
