High-Temperature Ceramic Fiber Paper

Description:

1. **TOP SEALING Ceramic Fiber Paper** is meticulously crafted from high-purity refractory fibers, specifically designed for applications requiring high-temperature insulation.

2. Employing state-of-the-art manufacturing techniques, the fiber distribution within the paper is meticulously uniform, ensuring consistent thickness and precise dimensional stability.

3. Constructed from refractory ceramic fibers with a minimal, scientifically selected, and strictly controlled amount of bonding agent, our paper is engineered for optimal performance.

4. The bonding agent is designed to burn off completely during use, leaving behind a product free of asbestos. This makes it an ideal material for both sealing and insulating applications, offering a safe and effective solution.

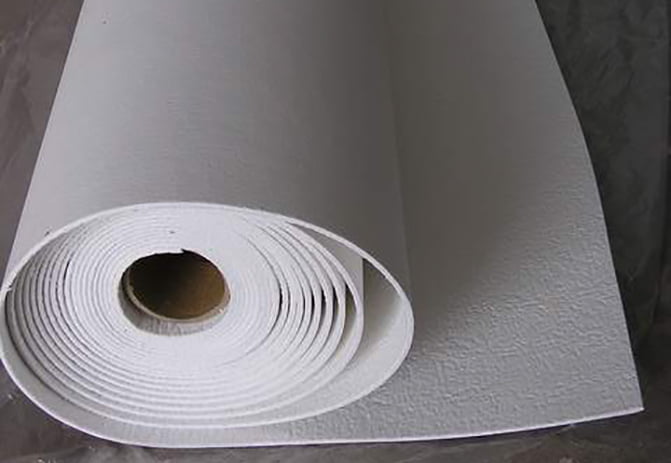

Detail Image

Product Details

DescriptionGrade		STD	HP	HA	HZ
TENGLONG style		4210STD	4210HP	4210HA	4210HZ
Classification Temperature	English	2300℉	2300℉	2562℉	2606℉
	Metric	1260℃	1260℃	1350℃	1430℃
Max Operating Temperature	English	1472℉	1922℉	2192℉	2552℉
	Metric	800℃	1050℃	1200℃	1400℃
Density	English	12.5±0.625lb/ft3
	Metric	200±10kg/m3
Length	English	2362/1575/1181/788/591/472inch
	Metric	60000/40000/30000/20000/15000/12000mm
Width	English	48inch/24inch
	Metric	1220/610mm
Thickness	English	0.04-0.24
	Metric	1-6mm
Color		White
Package		Carton box

Remarks: The data above is for reference. The Max. temp. depends on the working conditions.

Features
·"Low thermal conductivity"
·"Excellent corrosion resistance"
· Good for die-cut and automatic stamping
· Light-weight, flexible, good handling strength and good uniformity

More Styles

Application Data

Advantages

Video

Comparison Vision

DescriptionGrade		STD	HP	HA	HZ
TENGLONG Style		4210STD	4210HP	4210HA	4210HZ
Classification Temperature	English	2300℉	2300℉	2562℉	2606℉
Classification Temperature	Metric	1260℃	1260℃	1350℃	1430℃
Chemical Composition	Al2O3	43%	47%	55%	38%
	SiO2	53%	51%	44%	44%
	Fe2O3 + Ti2O3	≤1.2	≤0.3	≤0.3	≤0.2
	CaO + MgO	≤0.3	≤0.3	≤0.3	≤0.2
	NaO + KO2	≤0.5	≤0.3	≤0.3	≤0.2
Thermal Conductivity by mean temp. (250kg/m3)	200℃	0.055~0.065W/m.k.		0.060~0.070W/m.k.
	400℃	0.110~0.120W/m.k.		0.105~0.125W/m.k.
	600℃	0.160~0.170W/m.k.		0.170~0.180W/m.k.
Shrinkage on Heating		800°(1472℉) ×24h ≤-3%	1000°C(1832℉) ×24h ≤-3%	1280°C(2336℉) ×24h ≤-3%	1400°C(2552℉) ×24h ≤-3%
Tensile Strength		≥0.3MPa
Organics Content		≤9
Loss of Ignition		≤10%
LOI		< 9%

-Industrial furnace, Heat treatment, High temperature pipe
-Insulating materials of boiler, turbine and nuclear power
-Insulating material for face and top of industrial furnaces and heating device
-Excellent sound insulation for Construction Fire protection
-High temperature filter material for nonferrous metal

Simply you can wholesale High-Temperature Ceramic Fiber Paper direct from manufacturers.

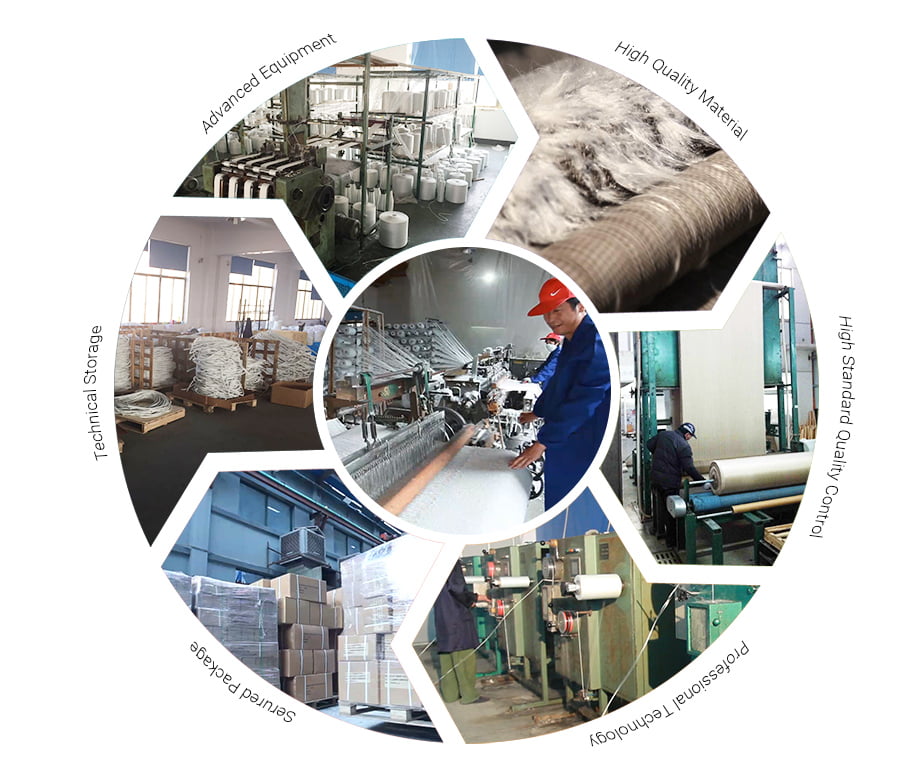

Professional Manufacturer
