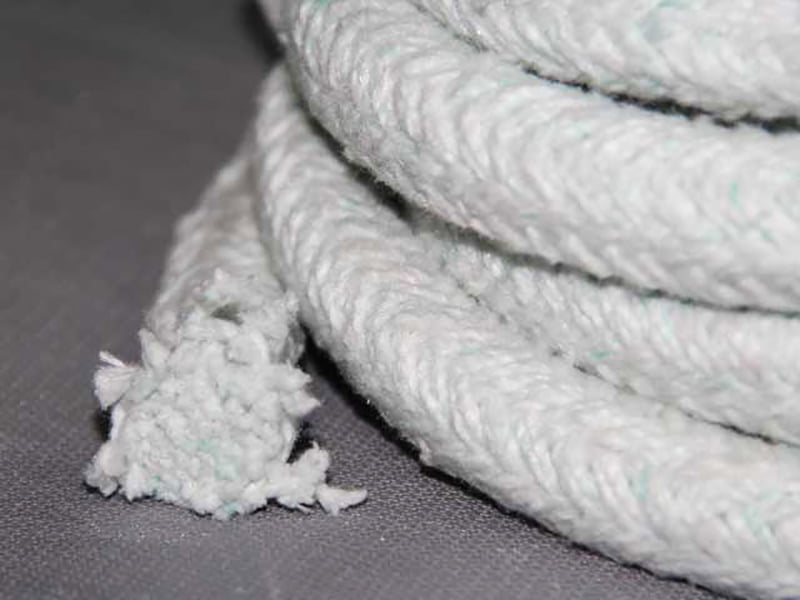

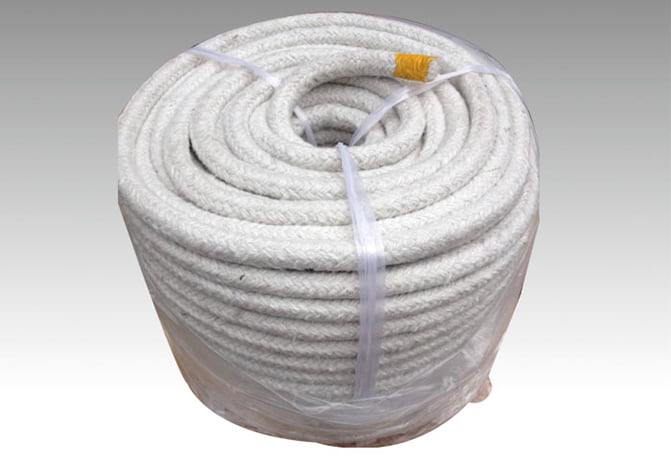

High-Performance Ceramic Fiber Rope

Description:

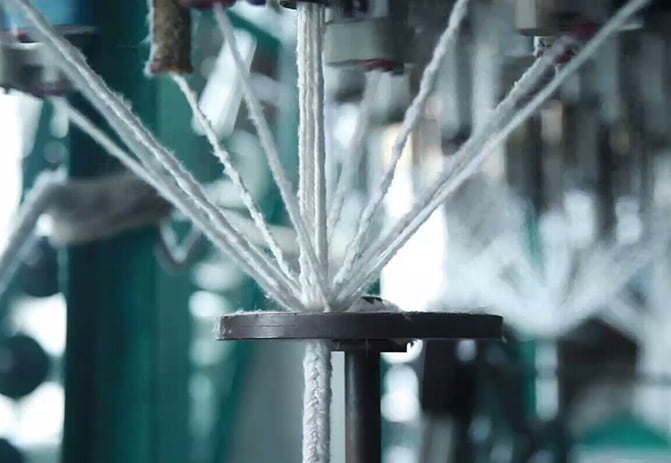

Introducing the 'TOP SEALING CERAMIC FIBER ROPE,' meticulously crafted from premium ceramic fiber yarns. Our innovative braiding technique creates a robust, solid packing that offers exceptional performance in sealing and thermal insulation applications. Characterized by its low thermal conductivity, this versatile product is designed to meet a variety of industrial needs.

Widely recognized for its effectiveness, the 'TOP SEALING CERAMIC FIBER ROPE' has become a staple in industries such as welding, foundry work, aluminum and steel production, boiler insulation and sealing, exhaust system management, shipbuilding, oil refining, power generation, and chemical processing. Trust our rope to deliver reliable sealing and insulation in the most demanding environments.

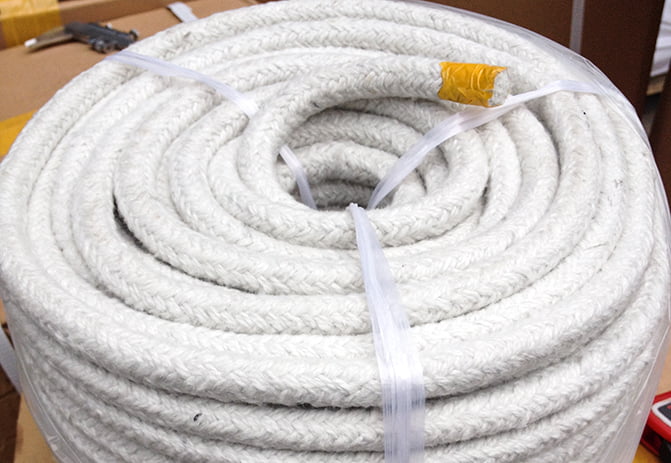

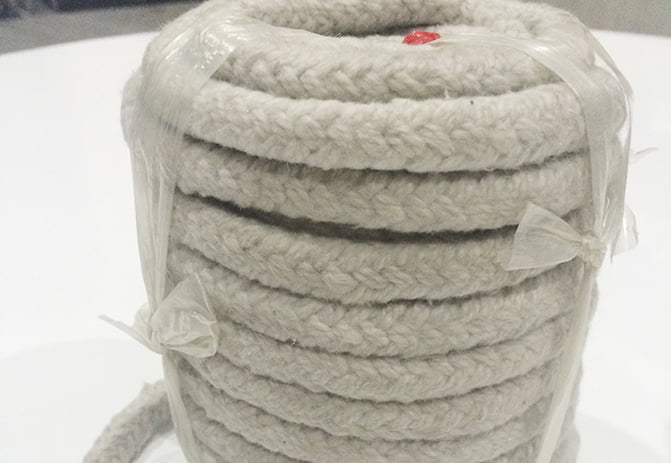

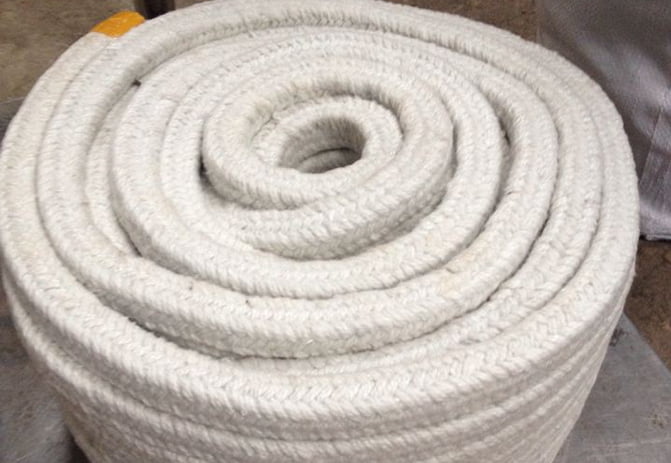

Detail Image

Product Details

DescriptionItem		Ceramic Fiber Rope With Fiber Glass Reinforced	Ceramic Fiber Rope With Metal Reinforced
TENGLONG style		4100R-FG,4100S-FG,4000T	4100R-INC,4100S-INC,4000T-INC
Reinforced Material		Glass Filament	Stainless Steel
Classification Temperature	English	2300℉	2300℉
	Metric	1260℃	1260℃
Maximum Operating Temperature	English	1562℉	1922℉
	Metric	850℃	1050℃
Alkali Content		Good	Good
Electrical Insulation Property		Better	Good
Strength		Good	Better

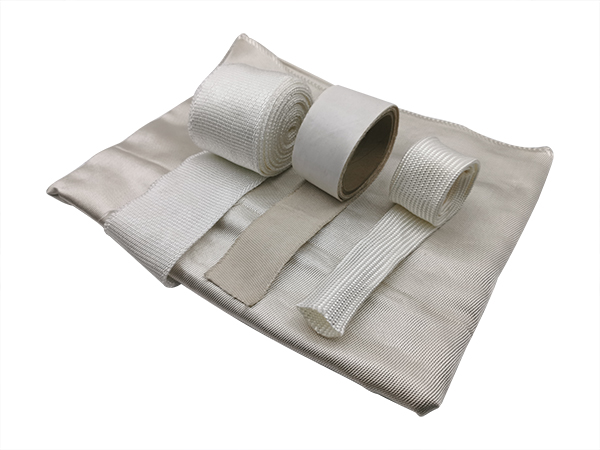

More Styles

Application Data

Advantages

Video

Comparison Vision

DescriptionItem		Ceramic Fiber Round Rope		Ceramic Fiber Square Rope		Ceramic Fiber Twisted Rope
TENGLONG Style		4100R-FG	4100R-INC	4100S-FG	4100S-INC	4000T	4000T-INC
Construction		Round Braid		Square Braid		Twisted 3-ply
Density	English	50lb/ft3		75lb/ft3		25lb/ft3
	Metric	800 kg/m3		1200 kg/m3		400 kg/m3
Dimensions	English	Ø 1/4” - 4”		Ø1/4” - 2”		Ø 1/4” - 2”
	Metric	6mm-100mm		6mm-60mm		6mm-60mm
Colour		White
Chemical Composition	Al2O3 + SiO2	97%
	Al2O3	47%
	Fe2O3	1%
Fiber Diameter		2-4 microns
Fiber Length		100-250 mm
Shrinkage		<3.5% 982℃ (1800 ºF )
pH Range		2-12

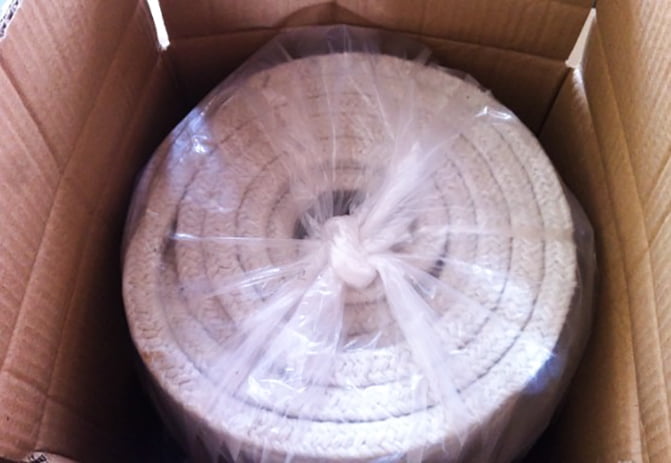

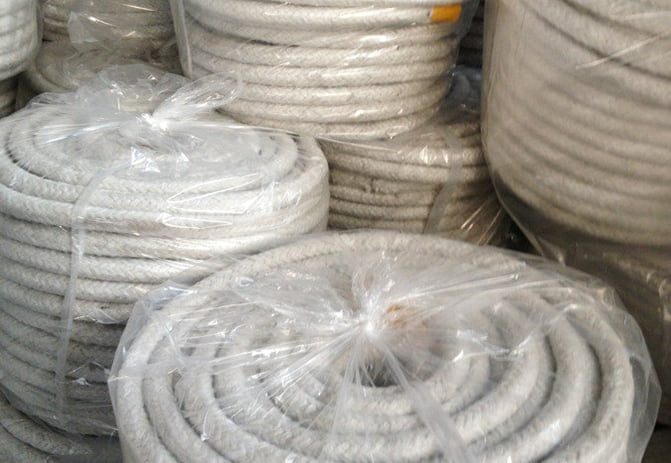

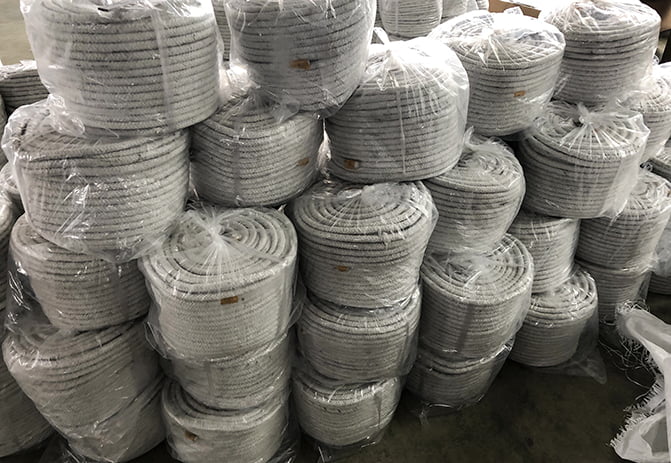

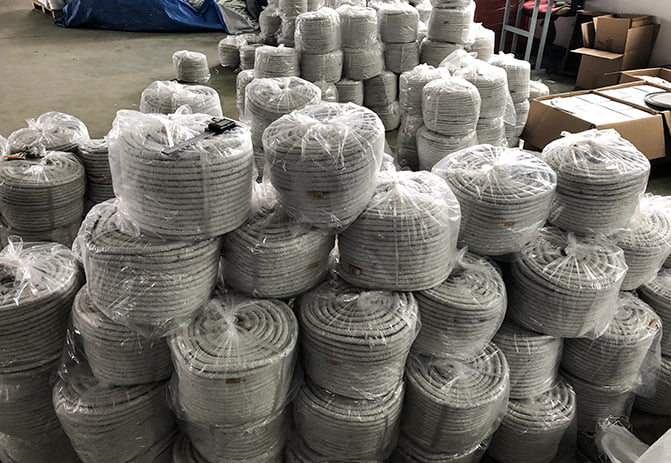

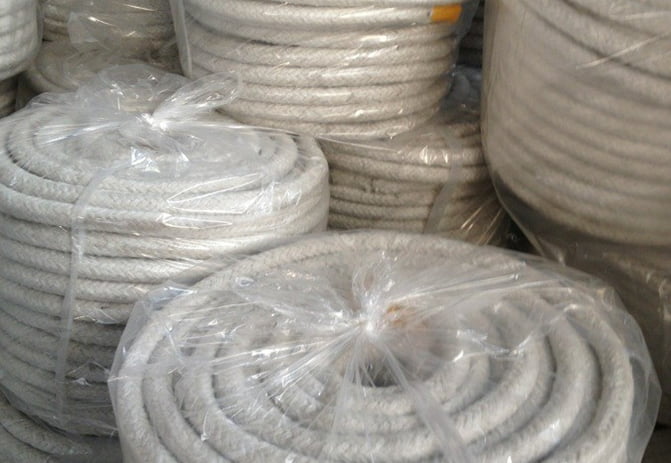

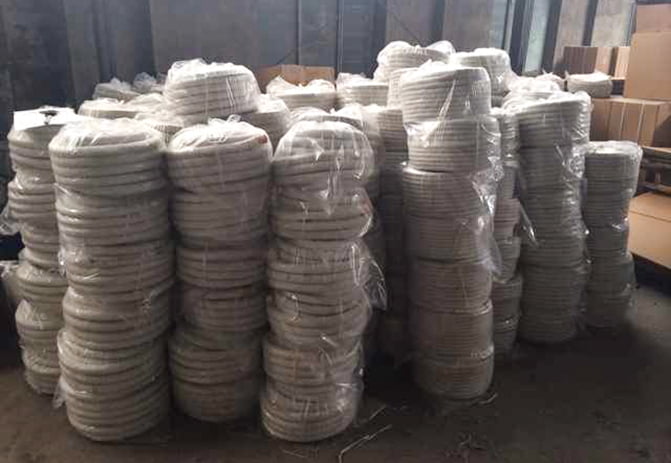

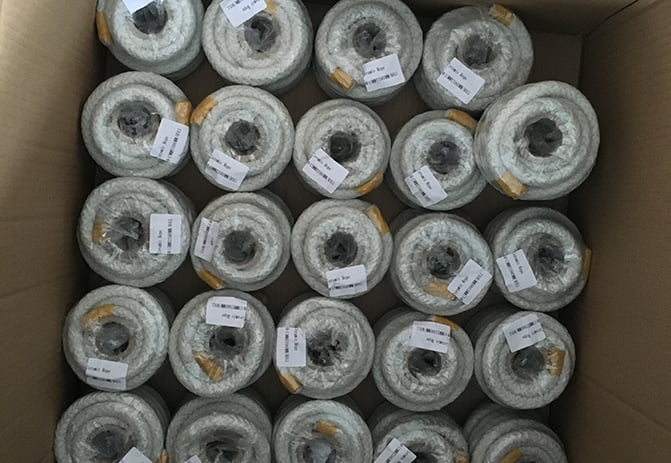

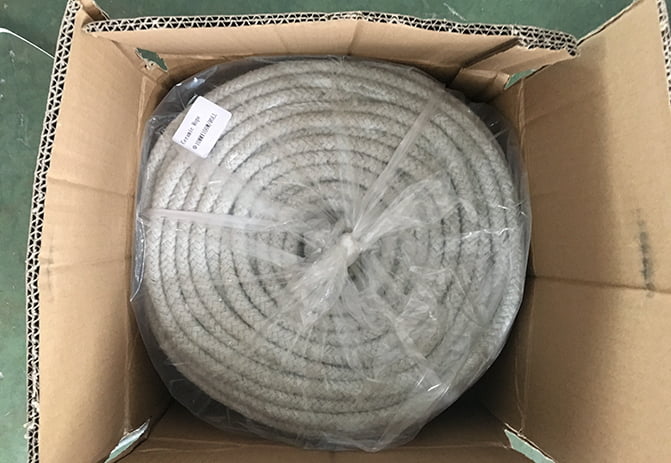

Package		25M, 30M, 5KG per roll or as customers requested, 20kg/CTN or 50kgs/plastic woven bag

Thermal insulation and sealing for stove, burner, chimney door sealing --Seal for heat exchanger, kiln car

Simply you can wholesale High-Performance Ceramic Fiber Rope direct from manufacturers.

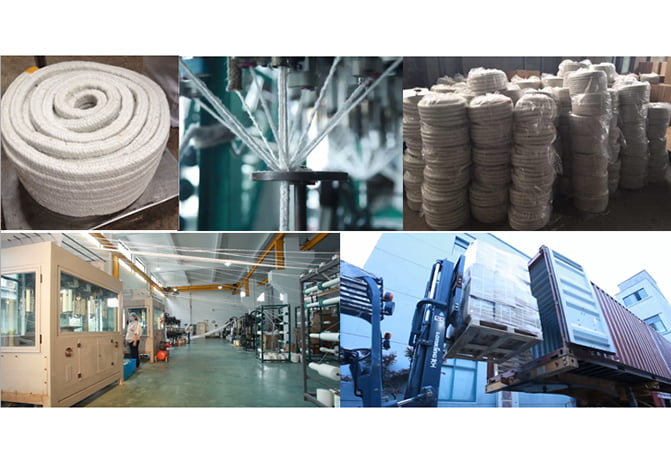

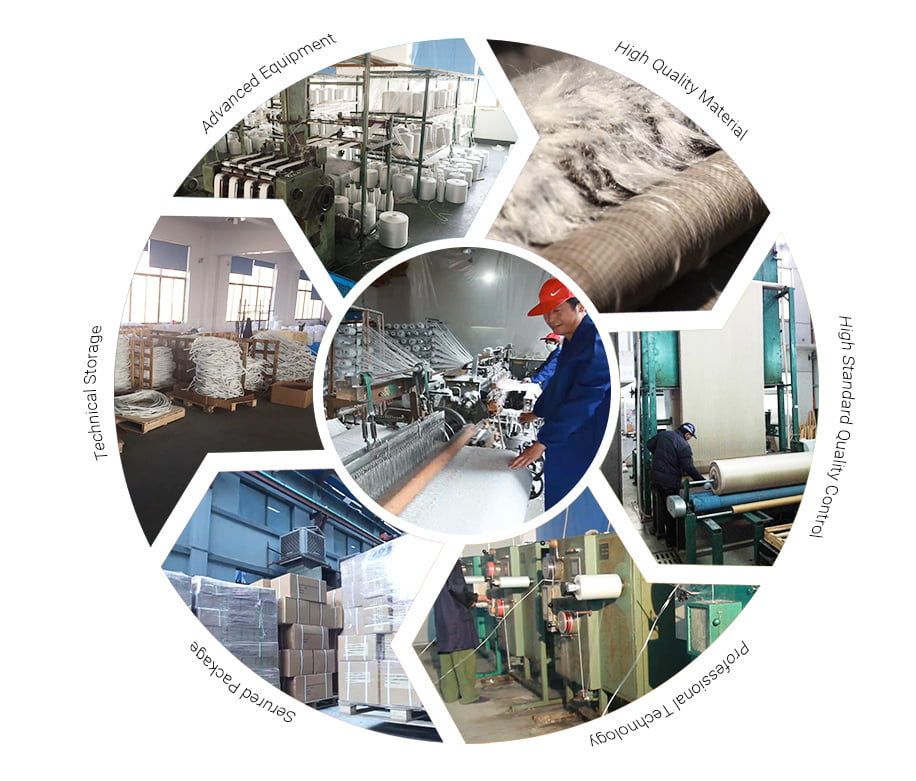

Professional Manufacturer
