High-Performance Ceramic Fiber Insulation Tubes

Description:

"Premium Ceramic Fiber Tubes: Engineered for Extreme Performance"

1. **Top Sealing Ceramic Fiber Tubes**: These are meticulously woven from high-purity alumina-silicate-based ceramic fibers, fortified with fiberglass filaments and, optionally, alloy steel wires for enhanced durability and strength.

2. **Ceramic Fiber Braided Tubes**: Expertly crafted to surpass the most demanding thermal, mechanical, and electrical performance standards, these tubes are the epitome of reliability in extreme conditions.

3. **High-Temperature Ceramic Fiber Braided Tubes**: With a pristine white color and odorless composition, these tubes are ideal for applications that require resistance to temperatures up to 2300°F (1260°C).

4. **Industrial Furnace Applications**: In industrial furnaces, these tubes excel as thermal barriers, effectively isolating various temperature zones. Additionally, their design prevents the shedding of particulates, ensuring a cleaner and safer operational environment.

High-Performance Ceramic Fiber Insulation Tubes

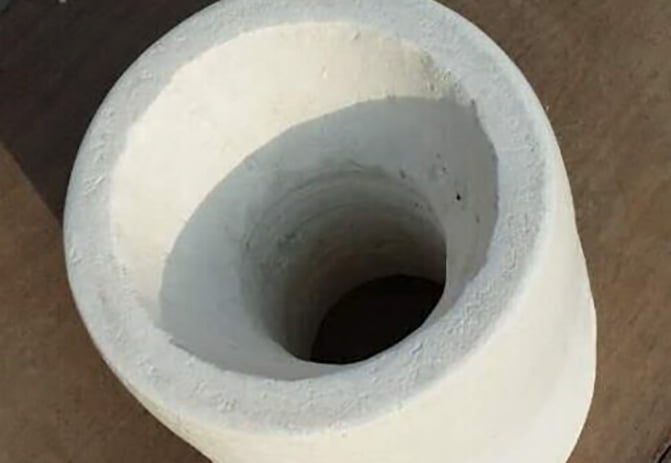

Detail Image

Product Details

Features

"Premium Ceramic Fiber Tubes: Exceptional Performance for High-Temperature Applications"

Discover the outstanding features of our Ceramic Fiber Tubes, crafted for superior performance in demanding environments:

- **Minimal Thermal Conductivity**: Our tubes provide exceptional insulation, significantly reducing heat transfer for optimal thermal efficiency.
- **Fire and Flame Resistant**: Engineered to withstand direct exposure to flames, ensuring safety and reliability in high-risk settings.
- **High-Temperature Stability**: Retains structural integrity and performance even under prolonged exposure to extreme heat, making it ideal for continuous use in harsh conditions.
- **Lightweight with Enhanced Handling Strength**: The woven texture of our tubes offers a perfect balance of lightness and strength, ensuring ease of handling and durability in various applications.

More Styles

Application Data

Advantages

Video

Comparison Vision

Description		Ceramic Fiber Braided Tube
TENGLONG Style		4200
Tube thickness		1.5-5mm
Inner Diameter		10-150mm
Reinforcements		Fiberglass or Stainless
Color		White
Operating temperature		650-1000℃
Ultimate strength		0.03-0.05
Fiber Diameter		2-4μm
Shrinkage(1800℉，3H)		<3%

-Heat insulation furnace curtain, large area thermal insulation.
-Radiant heat shielding, flexible fabric expansion joints for high-temperature piping.
-Safety blankets, welding blankets, protective and insulating covers, gaskets, cable or pipe wrapping, etc.

Simply you can wholesale High-Performance Ceramic Fiber Insulation Tubes direct from manufacturers.

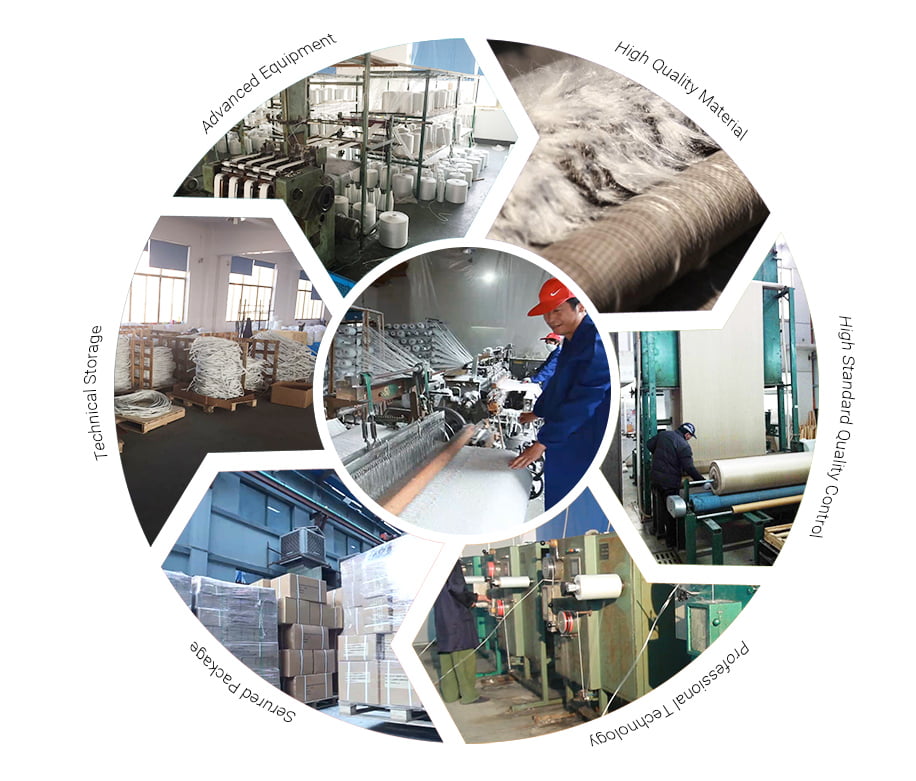

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and High-Performance Ceramic Fiber Insulation Tubes suppliers known by the world since 2000.
