The TOP SEALING 23 PCS Gland Packing Installation Kit is a comprehensive set designed to provide all the necessary components for a high-quality gland packing installation. With 23 pieces included, this kit ensures you have a variety of options to suit different sealing requirements, enhancing the efficiency and longevity of your sealing system.
Before utilizing the combination packing tool, select a tie rod of appropriate length and a correspondingly sized crochet wrench based on the size of the packing you intend to assemble. This will allow you to construct a packing lifting tool. Subsequently, screw the cone into the two points of the packing pair and rotate it for a few turns. Follow these steps:
1. **Packing Removal**: Gently pull the handle with one hand and the other handle simultaneously. (Ensure that force is applied evenly with both hands.)
2. **Packing Installation**: Prior to installation, it is essential to choose the appropriate packing that matches the specific working conditions. After each rotation, slowly press the packing along the circumference or into the bearing, ensuring it is correctly positioned within the packing gland.

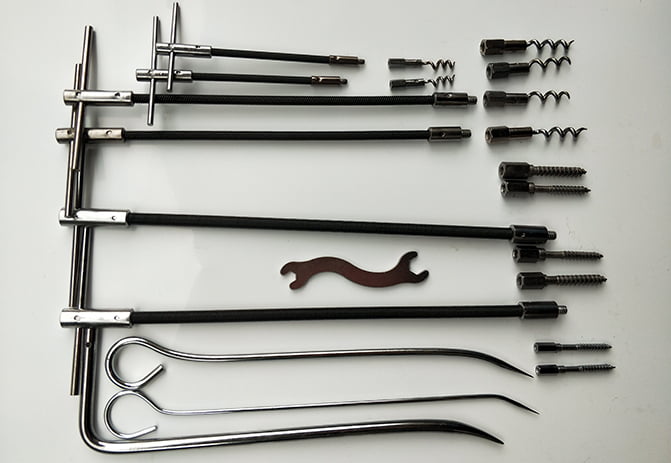

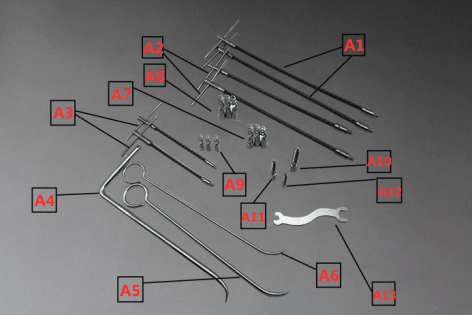

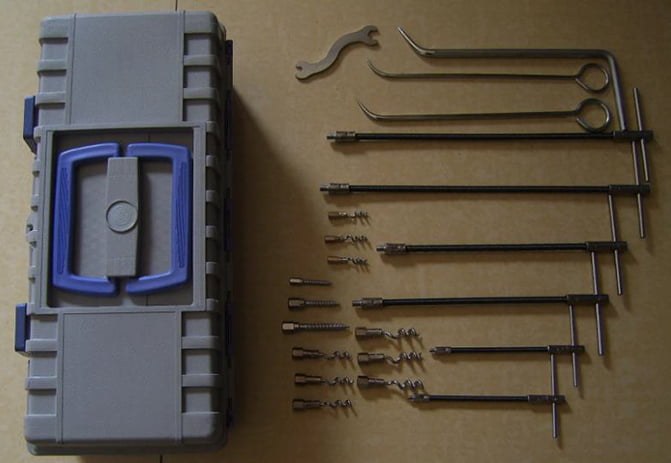

| Num | Name | Specification | Performance | Bottom | Quantity/PCS |
| A1 | Flexible handling handle | 320MM | Flexible tie rod | Flexible handling | 2 |
| A2 | Flexible handling handle | 260MM | Flexible tie rod | Flexible handling | 2 |
| A3 | Flexible handling handle | 145MM | Flexible tie rod | Flexible handling | 2 |
| A4 | Rigid hook | Φ8MM | Rigidity | Cutting edge | 1 |
| A5 | Rigid hook | Φ5MM | Rigidity | Cutting edge | 1 |
| A6 | Rigid hook | Φ4MM | Rigidity | Cutting edge | 1 |
| A7 | Curved crochet | Φ10MM | Curved | Flexible handling | 3 |
| A8 | Curved crochet | Φ8MM | Curved | Flexible handling | 3 |
| A9 | Curved crochet | Φ6MM | Curved | Flexible handling | 3 |
| A10 | Thread drill | Φ10MM | Straight | Flexible handling | 1 |
| A11 | Thread drill | Φ8MM | Straight | Flexible handling | 1 |
| A12 | Thread drill | Φ6MM | Straight | Flexible handling | 1 |
| A13 | Wrench | M6/8 | Practical | Flexible | 1 |

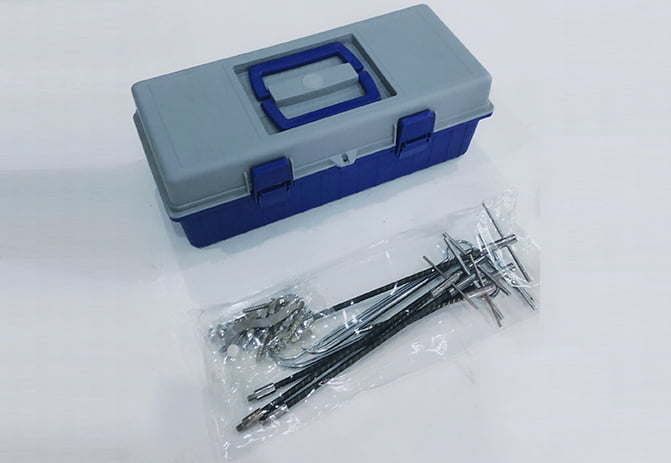

| A14 | Tool Box | 13" | Durable | Durable | 1 |
Simply you can wholesale 23-Piece Gland Packing Installation Kit direct from manufacturers.
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and 23-Piece Gland Packing Installation Kit suppliers known by the world since 2000.
