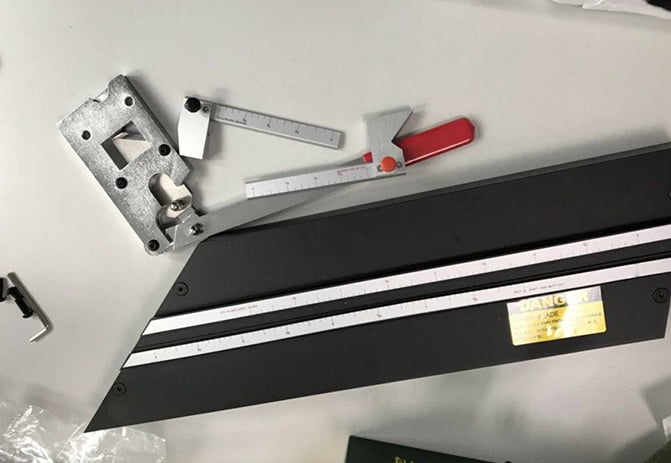

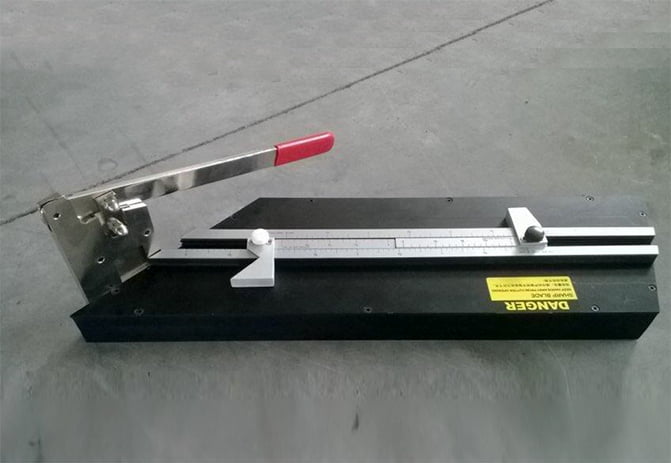

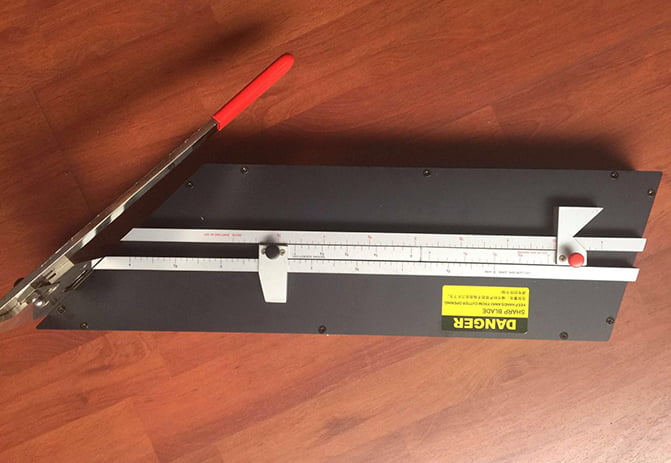

Introducing the TOP SEALING Gate Type Packing Cutter SP-80060, crafted from a unique alloy for exceptional durability. This versatile tool effortlessly slices through a variety of material packings, including PTFE, graphite, and aramid. Equipped with a high-visibility scale, it streamlines the cutting process, saving you time, minimizing material waste, and eliminating the need for repeated installations. Precision and efficiency at your fingertips with the SP-80060.
For seamless operation, simply align the scale with the cross-sectional size of the packing material. Next, adjust the other scale to match the shaft diameter. With these settings in place, proceed to cut the ring with confidence and precision.
| DescriptionItem | Gate Type Packing Cutter | ||||
| Style | SP-80060 | ||||
| Tool Size | 600MM L X 180MM W X 80MM H | ||||
| Material | Aluminum alloy（except escala） | ||||
| Cutting Angle | 15° or 45° or 90° | ||||
| Max Packing Cross Section Size | 30MM' | ||||
| Max Packing Ring Length | 4'' If it is more than 4", you can remove 2 buttons, also can be cut. |
||||
Simply you can wholesale Precision Gate-Style Gasket Trimming Machine direct from manufacturers.
1. "Effortlessly slice through a wide range of material packings, including the challenging aramid packing."
2. "Achieve precise cuts with minimal margin for error, ensuring consistent quality and performance."
3. "Innovative size conversion design eliminates the need for complex calculations, streamlining the cutting process."
4. "Exclusive fixture design secures the packing in place, preventing any looseness or misalignment of the cutting edge."
5. "Conveniently portable, the tool offers a cost-effective and practical solution for all your cutting needs."
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Precision Gate-Style Gasket Trimming Machine suppliers known by the world since 2000.
