High-Temperature Ceramic Fiber Gaskets

Description:

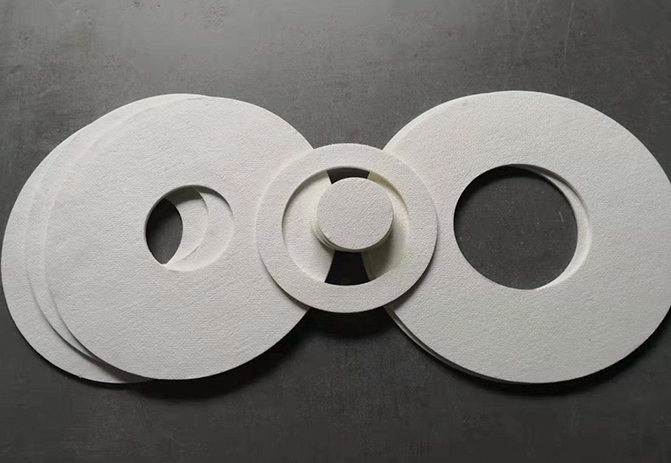

Premium TOP SEALING Ceramic Fiber Gaskets: Engineered for High-Temperature Insulation Excellence

Our TOP SEALING Ceramic Fiber Gaskets are meticulously crafted from high-quality ceramic fiber paper, renowned for its exceptional performance in high-temperature insulation applications. Utilizing advanced manufacturing techniques, we ensure an even distribution of fibers, with precise control over the paper's thickness and uniformity.

Constructed from refractory ceramic fiber with a scientifically selected and strictly controlled binder, our gaskets are designed for optimal performance. The binder is engineered to burn off completely during use, leaving behind only the resilient ceramic fibers.

Asbestos-free and highly effective, our TOP SEALING Ceramic Fiber Gaskets are the perfect choice for sealing and insulating applications that demand the highest standards of safety and performance.

Detail Image

Product Details

DescriptionGrade		STD	HP	HA	HZ
TENGLONG Style		4210STD	4210HP	4210HA	4210HZ
Classification Temperature	English	2300℉	2300℉	2562℉	2606℉
Classification Temperature	Metric	1260℃	1260℃	1350℃	1430℃
Chemical Composition	Al2O3	43%	47%	55%	38%
	SiO2	53%	51%	44%	44%
	Fe2O3 + Ti2O3	≤1.2	≤0.3	≤0.3	≤0.2
	CaO + MgO	≤0.3	≤0.3	≤0.3	≤0.2
	NaO + KO2	≤0.5	≤0.3	≤0.3	≤0.2
Thermal Conductivity by mean temp. (250kg/m3)	200℃	0.055~0.065W/m.k.		0.060~0.070W/m.k.
	400℃	0.110~0.120W/m.k.		0.105~0.125W/m.k.
	600℃	0.160~0.170W/m.k.		0.170~0.180W/m.k.
Shrinkage on Heating		800°(1472℉) ×24h ≤-3%	1000°C(1832℉) ×24h ≤-3%	1280°C(2336℉) ×24h ≤-3%	1400°C(2552℉) ×24h ≤-3%
Tensile Strength		≥0.3MPa
Organics Content		≤9
Loss of Ignition		≤10%
LOI		< 9%

More Styles

Application Data

Advantages

Video

Comparison Vision

DescriptionGrade		STD	HP	HA	HZ
TENGLONG style		4210STD	4210HP	4210HA	4210HZ
Classification Temperature	English	2300℉	2300℉	2562℉	2606℉
	Metric	1260℃	1260℃	1350℃	1430℃
Max Operating Temperature	English	1472℉	1922℉	2192℉	2552℉
	Metric	800℃	1050℃	1200℃	1400℃
Density	English	12.5±0.625lb/ft3
	Metric	200±10kg/m3
Length	English	2362/1575/1181/788/591/472inch
	Metric	60000/40000/30000/20000/15000/12000mm
Width	English	48inch/24inch
	Metric	1220/610mm
Thickness	English	0.04-0.24
	Metric	1-6mm
Color		White

Simply you can wholesale High-Temperature Ceramic Fiber Gaskets direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and High-Temperature Ceramic Fiber Gaskets suppliers known by the world since 2000.
